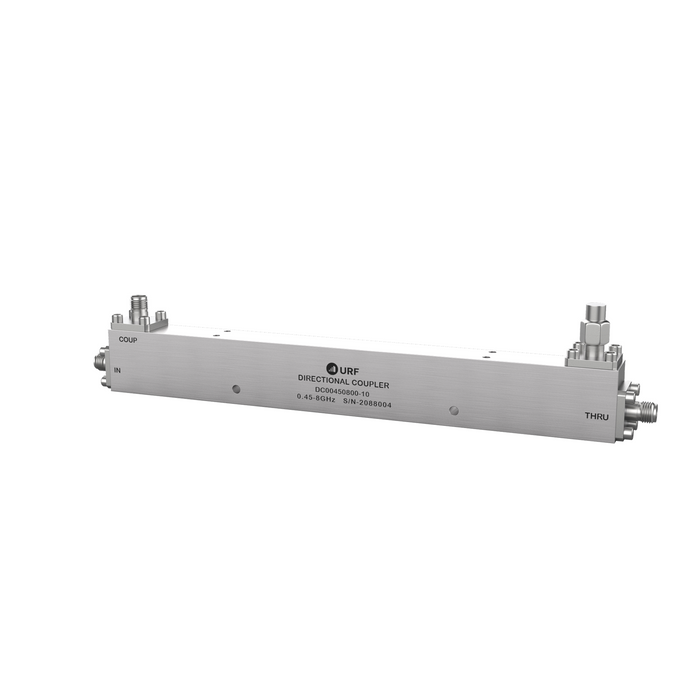

0.45-8GHz 10dB Directional Coupler

0.45-8GHz 10dB Directional Coupler

SKU DC00450800-10
Availability:
30 in stock, ready to be shipped
Availability:
Only 4 left!
$430.00 - $2,085.00
$430.00
$430.00 - $2,085.00
$430.00

Low VSWR: 1.10:1 typ, 1.30:1 max

Insertion Loss: 1.4dB max

Coupling: 10±0.6dB max

Flatness: ±0.8dB max

Directivity: 17dB min

Power: 20W CW max, 3000W peak max

DC Pass Capability: Yes

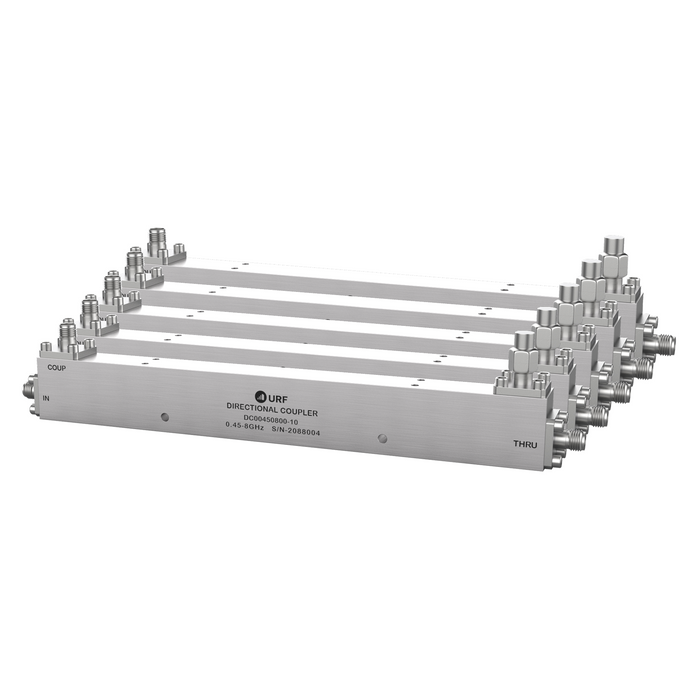

Pack Size: 1 Pack

WHY CHOOSE THIS DIRECTIONAL COUPLER?

  • ✔ Multi-Band Coverage – Operates from 0.45 to 8GHz, eliminating the need for multiple narrowband couplers.
  • ✔ Test Without Disruption – 10dB coupling enables accurate signal sampling or injection with minimal impact on the main signal path.
  • ✔ Ideal for High-Power Setups – Handles up to 20W continuous and 3000W peak, supporting power amplifier and antenna testing.
  • ✔ Built-In DC Pass – Bias active components directly without external bias tees or injectors.

PRODUCT OVERVIEW

Built for RF systems, this directional coupler operates across 0.45 to 8GHz with a 10dB coupling factor. It offers maximum insertion loss of 1.4dB, min directivity of 17dB, and 1.30:1 max VSWR to ensure efficient signal sampling and impedance matching. Capable of handling up to 20W CW max, 3000W peak max, it’s a reliable choice for demanding applications.


SPECIFICATIONS

Frequency Range

0.45–8GHz

Main Line VSWR

1.30:1 max

Coupling VSWR

1.30:1 max

Insertion Loss¹

1.4dB max

Coupling

10±0.6dB max

Flatness

±0.8dB max

Directivity

17dB min.

Power²

CW: 20W max; peak: 3000W max

Weight

120g max

Dimension³

139.7x12.7x17.8mm (LxWxH)

Interface

Stainless Steel Connector; Input: SMA[F], Thru.: SMA[F], Coup.: SMA[F]

Finishing

Nickel Plating Per QQ-N-290

Operating Temperature

-55 ~ +85°C

Storage Temperature

-55 ~ +100°C

Environmental

Per MIL-STD-202F⁴

Eng. Customized

N/A

1. Theoretical 0.46dB Included
2. VSWR ≤1.2 required for CW
3. Unless otherwise specified, decimal tolerance: x.±1; .x±0.5; .xx±0.1
4. Optional, contact supplier for details


APPLICATIONS

Testing & Measurement

Provides precise signal sampling for spectrum analyzers, network analyzers, and RF test setups.

Signal Monitoring

Enables real-time observation of signals without interrupting transmission.

Power Management

Ensures accurate power measurements and protects sensitive components from unwanted signals.
