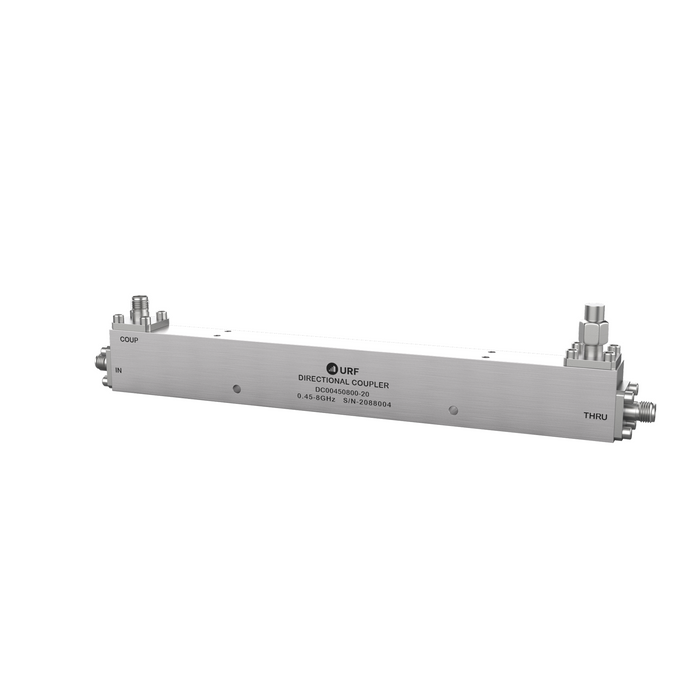

0.45-8GHz 20dB Directional Coupler
0.45-8GHz 20dB Directional Coupler

0.45-8GHz 20dB Directional Coupler

SKU DC00450800-20-05
Availability:
20 in stock, ready to be shipped
Availability:
Only 2 left!
$430.00 USD - $2,085.00 USD
$2,085.00 USD
$430.00 USD - $2,085.00 USD
$2,085.00 USD

Low VSWR: 1.30:1 max

Insertion Loss: 0.9dB max

Coupling: 20±0.7dB max

Flatness: ±0.9dB max

Directivity: 17dB min

Power: 20W CW max, 3000W peak max

DC Pass Capability: Yes

Large quantity orders?

Contact us for volume pricing.

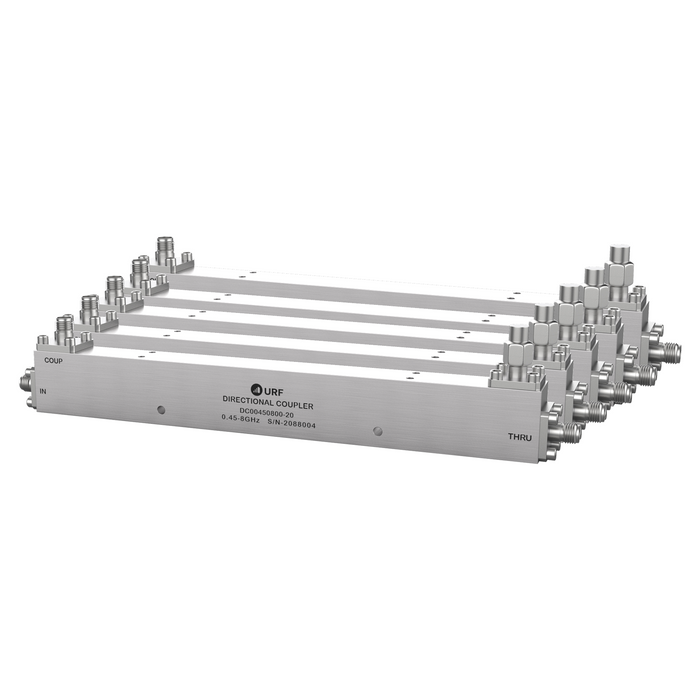

Pack Size: 5 Pack

WHY CHOOSE THIS DIRECTIONAL COUPLER?

  • ✔ Multi-Band Coverage – Operates from 0.45 to 8GHz, eliminating the need for multiple narrowband couplers.
  • ✔ Test Without Disruption – 20dB coupling enables accurate signal sampling or injection with minimal impact on the main signal path.
  • ✔ Ideal for High-Power Setups – Handles up to 20W continuous and 3000W peak, supporting power amplifier and antenna testing.
  • ✔ Built-In DC Pass – Bias active components directly without external bias tees or injectors.

PRODUCT OVERVIEW

Designed for wideband RF sampling, this 0.45–8GHz 10dB directional coupler delivers low-loss performance with up to 0.9dB insertion loss, ≥17dB directivity, and 1.30:1 max VSWR for low reflection and accurate monitoring. Rated for 20 W CW max and 3000 W peak, it’s a dependable choice for lab, production, and high power RF systems.


SPECIFICATIONS

Frequency Range

0.45–8GHz

Main Line VSWR

1.30:1 max

Coupling VSWR

1.30:1 max

Insertion Loss¹

0.9dB max

Coupling

20±0.7dB max

Flatness

±0.9dB max

Directivity

17dB min

Power²

CW: 30W max; Peak: 3000W max

Weight

120g max

Dimension³

139.7x12.7x17.8mm (LxWxH)

Interface

Input: SMA [F], Thru.: SMA [F], Coup.: SMA [F]

Finishing

Polyurethane Paint

Operating Temperature

-55 ~ +85°C

Storage Temperature

-55 ~ +100°C

1. Theoretical coupling loss included
2. VSWR ≤1.2 required for CW
3. Unless otherwise specified, decimal tolerance: x.±1; .x±0.5; .xx±0.1


APPLICATIONS

Testing & Measurement

Provides precise signal sampling for spectrum analyzers, network analyzers, and RF test setups.

Signal Monitoring

Enables real-time observation of signals without interrupting transmission.

Power Management

Ensures accurate power measurements and protects sensitive components from unwanted signals.
