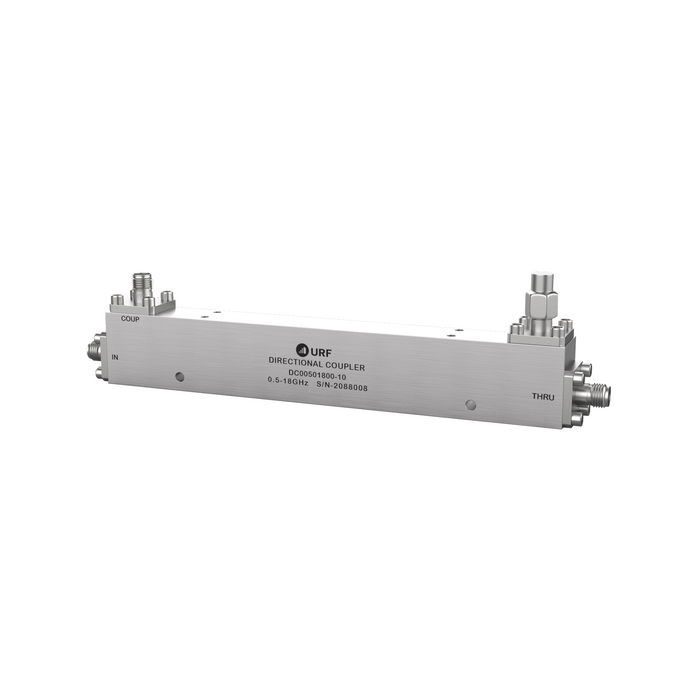

0.5-18GHz 10dB Directional Coupler

0.5-18GHz 10dB Directional Coupler

SKU DC00501800-10-05
Availability:
30 in stock, ready to be shipped
Availability:
Only 4 left!
$650.00 - $3,155.00
$3,155.00
$650.00 - $3,155.00
$3,155.00

Low VSWR: 1.10:1 typ, 1.30:1 max

Insertion Loss: 1.6dB max

Coupling: 10±0.7dB max

Flatness: ±0.8dB max

Directivity: 15dB min

POWER: 30W CW max, 3000W peak max

DC PASS CAPABILITY: Yes

Pack Size: 5 Pack

WHY CHOOSE THIS DIRECTIONAL COUPLER?

  • ✔ Multi-Band Coverage – Operates from 0.5 to 18GHz, eliminating the need for multiple narrowband couplers.
  • ✔ Test Without Disruption – 10dB coupling enables accurate signal sampling or injection with minimal impact on the main signal path.
  • ✔ Ideal for High-Power Setups – Handles up to 30W continuous and 3000W peak, supporting power amplifier and antenna testing.
  • ✔ Built-In DC Pass – Bias active components directly without external bias tees or injectors.
  • ✔ Rugged Construction – Nickel-plated stainless steel and MIL-STD-202F test compatibility for demanding environments.

PRODUCT OVERVIEW

Built for RF systems, this directional coupler operates across 0.5 to 18GHz with a 10dB coupling factor. It offers maximum insertion loss of 1.6dB, min directivity of 15dB, 1.10:1 typ, and 1.40:1 max to ensure efficient signal sampling and impedance matching. Capable of handling up to 30W CW max, 3000W peak max, it’s a reliable choice for demanding applications.


SPECIFICATIONS

Frequency Range

0.5-18GHz

Main Line VSWR

1.10:1 typ/1.30:1 max

Coupling VSWR

1.35:1 max

Insertion Loss¹

1.6dB max

Coupling

10±0.7dB max

Flatness

±0.8dB max

Directivity

15dB min

Power²

CW: 30W max; peak: 3000W max

Weight

90g max

Dimension³

111.8x12.7x17.8mm (LxWxH)

Interface

Stainless Steel Connector; Input: SMA[F], Thru.: SMA[F], Coup.: SMA[F]

Finishing

Nickel Plating Per QQ-N-290

Operating Temperature

-55 ~ +85°C

Storage Temperature

-55 ~ +100°C

Environmental

Per MIL-STD-202F⁴

Eng. Customized

N/A

1. Theoretical 0.46dB Included
2. VSWR ≤1.2 required for CW
3. Unless otherwise specified, decimal tolerance: x.±1; .x±0.5; .xx±0.1
4. Optional, contact supplier for details


APPLICATIONS

Testing & Measurement

Provides precise signal sampling for spectrum analyzers, network analyzers, and RF test setups.

Signal Monitoring

Enables real-time observation of signals without interrupting transmission.

Power Management

Ensures accurate power measurements and protects sensitive components from unwanted signals.
