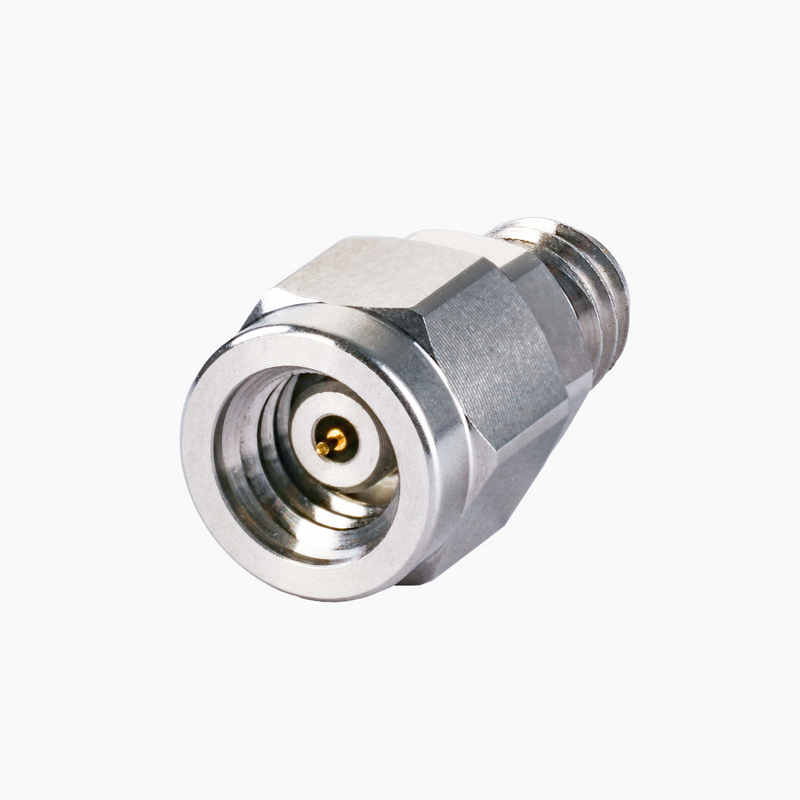

DC-110GHz 1.0mm Male - 1.0mm Female Adapter

DC-110GHz 1.0mm Male - 1.0mm Female Adapter

SKU A110G-10MF
Availability:
30 in stock, ready to be shipped
Availability:
Only 5 left!
$625.00 - $2,376.00
$625.00
$625.00 - $2,376.00
$625.00

Ultra Wideband: DC-110GHz

Low VSWR: 1.25:1 Max

Low Insertion Loss: 0.65dB Max

Long Durability: >1000 Cycles

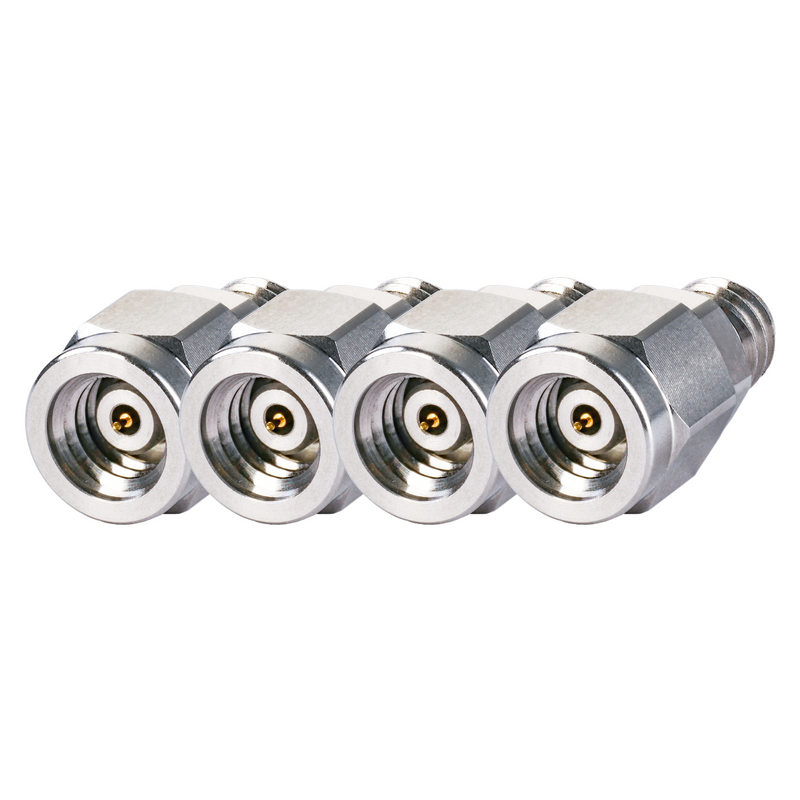

Pack Sizes: 1 Pack

PRODUCT OVERVIEW

The 1.0mm Male - 1.0mm Female Coaxial Adapter is engineered for DC to 110GHz applications, offering low insertion loss (0.65dB max) and 1.07:1 typ or 1.25:1 max VSWR for superior signal integrity. Designed for high-frequency lab testing, telecom systems, and precision RF applications, this adapter ensures stable and repeatable performance. Constructed from reinforced stainless steel, it withstands >1000 mating cycles, making it a long-lasting, high-precision solution.


SPECIFICATIONS

Frequency Range

DC-110GHz

VSWR

1.07:1 typ / 1.25:1 max

Insertion Loss

0.65dB max

Durability

>1000 Cycles min

Insulation Resistance

>5000 MΩ min

Operating Temperature

-65°C ~ +165°C

Body Material

Stainless Steel Passivated

Center Conductor

Gold-Plated Beryllium Copper

Dielectric

PEI


APPLICATIONS

RF Testing & Development.

Ensures precise signal integrity for high-frequency measurements.

Telecom & Wireless Networks

Enables reliable high-speed data transmission and optimized signal routing in communication infrastructure.

Medical & Precision RF Devices

Supports sensitive RF applications requiring high accuracy.
