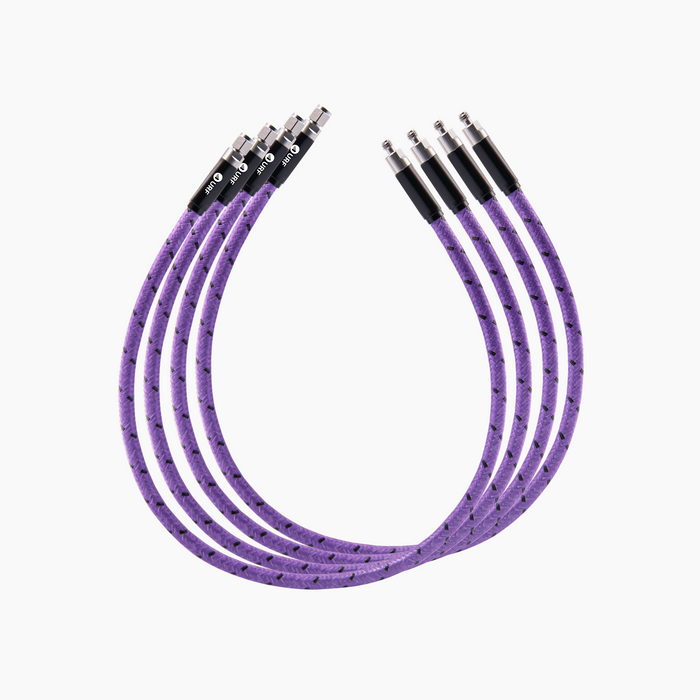

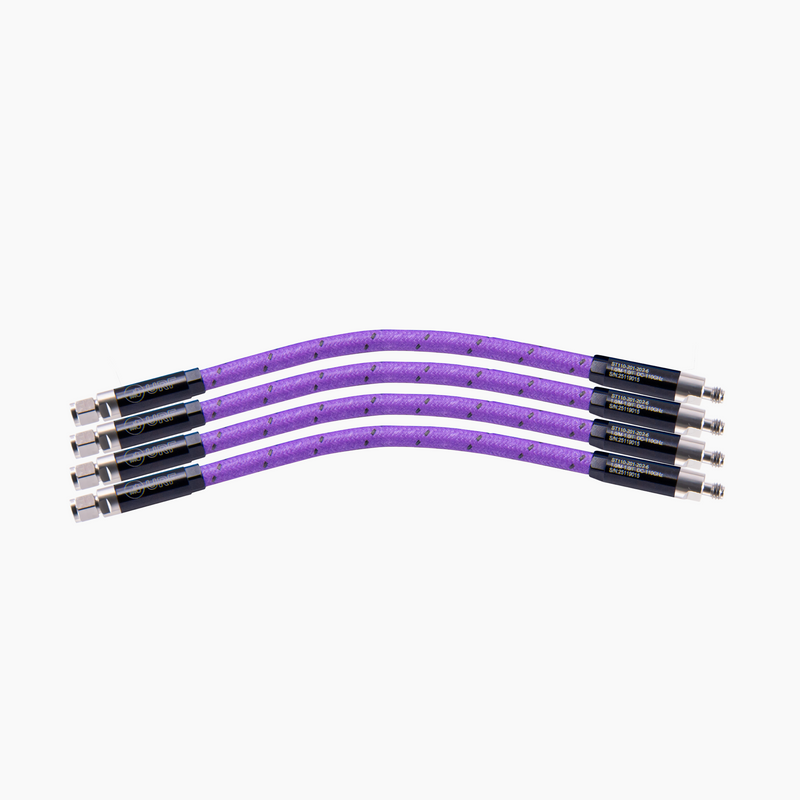

DC-110GHz 6-Inch Ultra-Flexible Low-Loss Test Cable, 1.0mm Male-Female

DC-110GHz 6-Inch Ultra-Flexible Low-Loss Test Cable, 1.0mm Male-Female

SKU ST110-201-202-6-04
Availability:
18 in stock, ready to be shipped
Availability:
Only 3 left!
$1,185.00 - $4,504.00
$4,504.00
$1,185.00 - $4,504.00
$4,504.00

Insertion Loss: 2.6dB typ, 2.9dB max @110GHz

VSWR: 1.26:1 typ, 1.35:1 max @110GHz

Shielding Effectiveness: >100dB

Phase Change vs Flexure: <±8° @110GHz

Amplitude Change vs Flexure: <±0.2dB @110GHz

Bending Radius: 30mm min

Pack Size: 4 Pack

WHY CHOOSE THIS CABLE?

  • ✔ Low Loss & High Stability – 2.6dB typ, 2.9dB max insertion loss @110GHz ensures minimal signal degradation.
  • ✔ Superior VSWR – 1.26:1 typ, 1.35:1 max @110GHz for optimized impedance matching.
  • ✔ Robust Shielding – >100dB shielding effectiveness minimizes external interference.
  • ✔ Exceptional Stability – Phase Change vs Flexure: <±8° @110GHz, Amplitude Change vs Flexure: <±0.2 dB @110GHz
  • ✔ Reinforced Durability – Multilayer armor resists compression, torsion, and abrasion.
  • ✔ Flexure-Optimized – Maintains stable performance under movement with 30mm min bend radius.

PRODUCT OVERVIEW

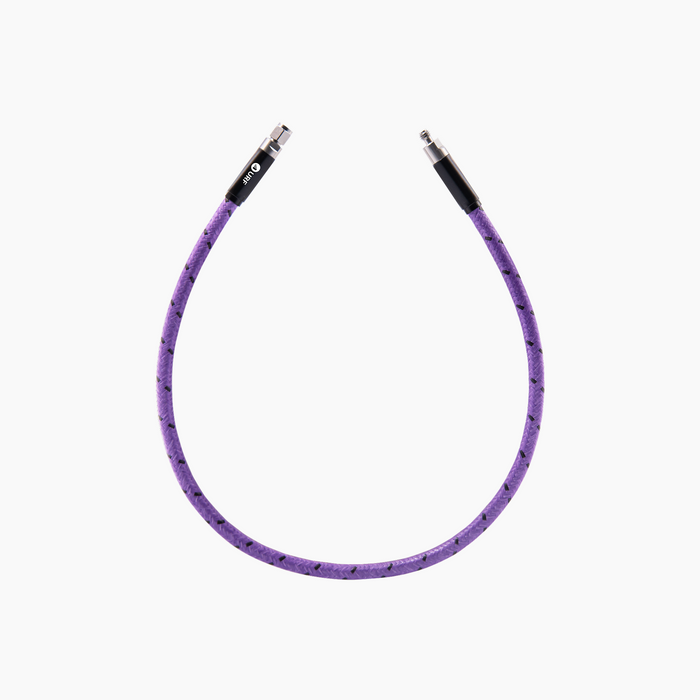

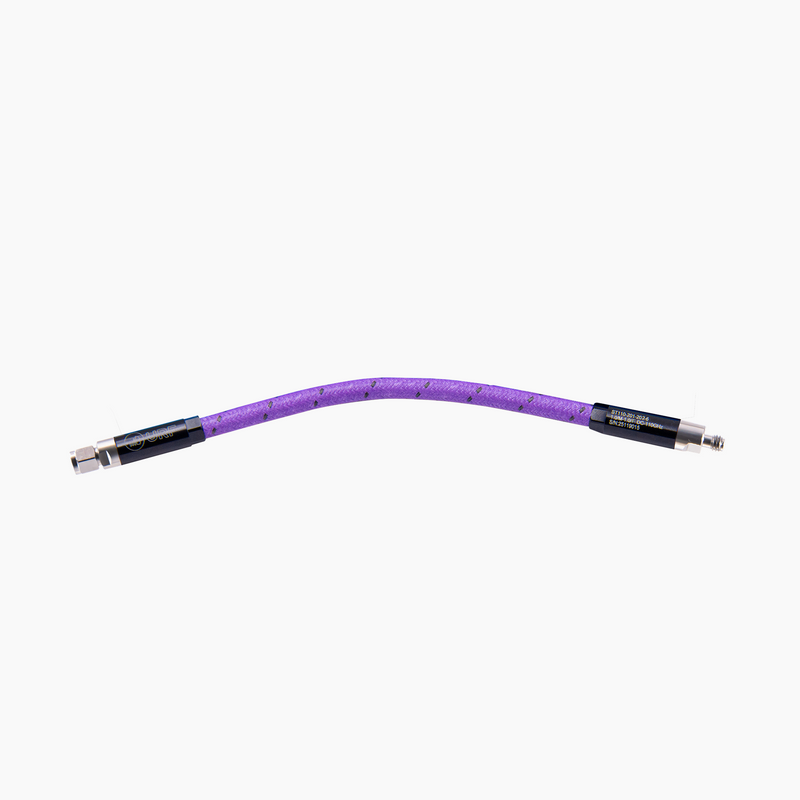

URF’s ST110-201-202-6 is a 6-inch armored test cable rated from DC to 110GHz. It features 1.0mm male-to-female stainless steel connectors, a low-loss, phase- and amplitude-stable core, and multilayer composite armor for enhanced durability. It delivers VSWR of 1.26:1 typ. / 1.35:1 max @110GHz with max insertion loss of 2.9dB. Its shielding effectiveness is >100dB, phase variation vs flexure <±8°, and amplitude variation vs flexure <±0.2dB @110GHz. The cable operates from –55 °C to +85 °C, with a 30mm minimum bend radius. Phase change rate is less than 100ppm in room temperature range (-10 ℃~+30 ℃).


SPECIFICATIONS

Frequency Range

DC–110GHz

Insertion Loss

2.6dB typ / 2.9dB max @110GHz

VSWR

1.26:1 typ / 1.35:1 max @110GHz

Shielding Effectiveness

>100dB

Amplitude Change vs Flexure

±0.2dB max @110GHz

Phase Change vs Flexure

±8° max @110GHz

Power Handling (at 40°C)

3.4W @110GHz / 49.3W @1GHz

Cable Diameter

5.0mm

Bending Radius

30mm min

Operating Temperature

-55~+85°C

Storage Temperature

-55~+85°C


APPLICATIONS

Lab and Production Line Test

Reliable for signal integrity checks in QA, prototyping, and manufacturing workflows.

5G Massive MIMO and Antenna OTA Test

Optimized for mmWave and multi-antenna system validation.

5G Switch and Attenuator Matrices Systems

Supports flexible routing and signal control at high frequencies.

Phase Array Test Systems

Enables phase-coherent evaluation and beamforming validation for multi-channel RF setups.

RF/Microwave Test Systems

Suitable for advanced RF validation across ultra-wideband frequencies.

High-Frequency Calibration and Verification

Ideal for precise calibration, delay matching, and measurement system verification at mmWave frequencies.
