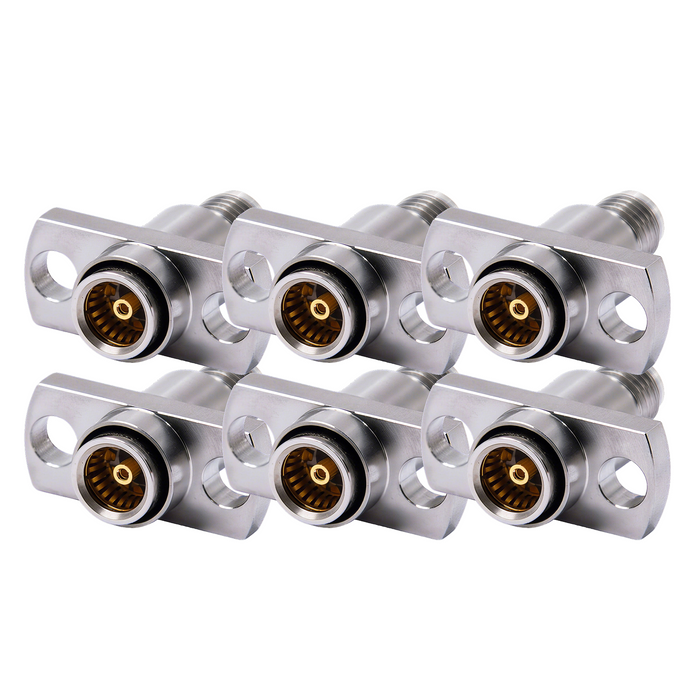

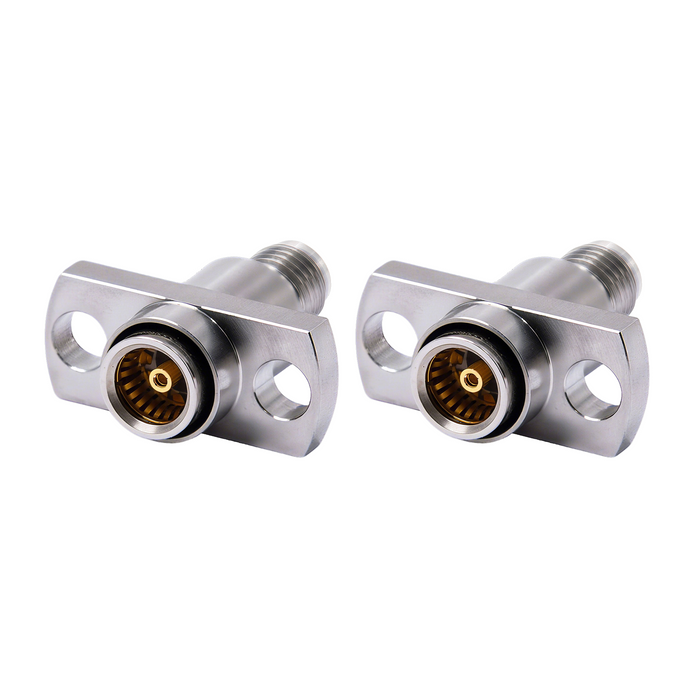

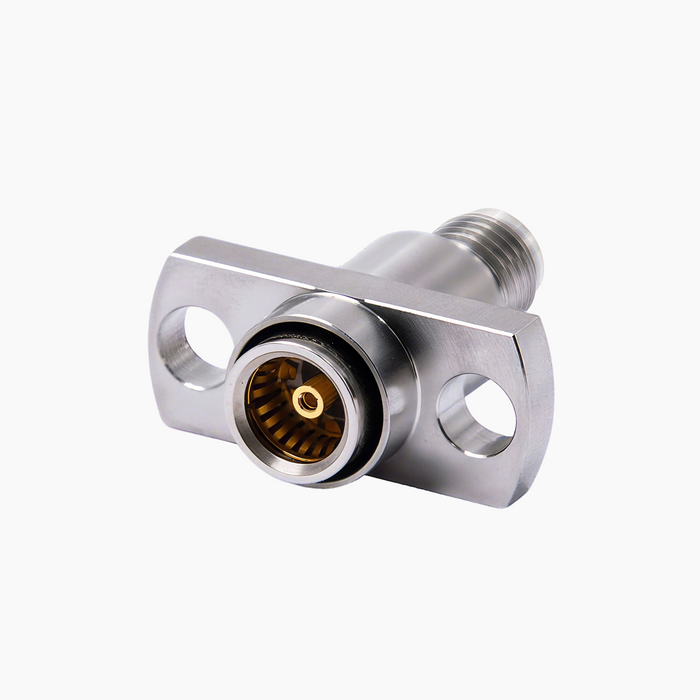

DC-18GHz SMA Female - BMA Female 2-Hole Flange Adapter

DC-18GHz SMA Female - BMA Female 2-Hole Flange Adapter

SKU A18G-SMBMFFF-02
Availability:
20 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
$76.00 - $216.00
$76.00
$76.00 - $216.00
$76.00

Ultra Wideband: DC to 18GHz

Low VSWR: 1.1:1 typ, 1.25:1 max

Low Insertion Loss: 0.2dB max

Configuration: Secure 2-hole flange mount

Durability: >1000 mating cycles

Material: BeCu gold plated conductor

Pack Sizes: 2 Pack

PRODUCT OVERVIEW

URF's SMA Female - BMA Female 2-Hole Flange adapter with a stainless steel passivated body and beryllium copper gold-plated center conductor features 1.1:1 typ, 1.25:1 max VSWR, 0.2dB insertion loss, and >1000 mating cycle durability. Designed for panel-mounted RF applications, ensuring low-loss, high-performance solution.


WHY CHOOSE THIS ADAPTER?

  • ✔ Secure Flange Mounting – Ensures stable installation for panel-mounted and test applications.
  • ✔ Low VSWR – 1.1:1 typ, 1.25:1 max for superior signal integrity.
  • ✔ Minimal Insertion Loss – 0.2dB max for efficient power transfer.
  • ✔ High Durability – Rated for >1000 mating cycles for long-term reliability.
  • ✔ Rugged Construction – Stainless steel passivated body for corrosion resistance.

SPECIFICATIONS

Frequency Range

DC-18GHz

VSWR

1.1:1 typ / 1.25:1 max

Insertion Loss

0.20dB max

Durability

>1000 Cycles min

Insulation Resistance

>5000 MΩ min

Operating Temperature

-65°C ~ +165°C

Body Material

Stainless Steel Passivated

Center Conductor

Beryllium Copper Gold Plated

Dielectric

PTFE


APPLICATIONS

RF Testing & Development.

Provides a secure 2-hole flange mount for stable high-frequency connections in test environments.

Telecom & Wireless Networks

Supports low-loss signal transmission in high-frequency communication networks.

Precision RF Devices

Ensures reliable, minimal-loss connectivity for sensitive RF applications.
