DC-27GHz SMA to SMA 3-Piece Adapter Kit

DC-27GHz SMA to SMA 3-Piece Adapter Kit

SKU A27G-SMA-KIT
Availability:
100 in stock, ready to be shipped
$84.00 - $84.00
$84.00
$84.00 - $84.00
$84.00

Ultra Wideband: DC-27GHz

Low VSWR: 1.15:1 Max

Low Insertion Loss: 0.25dB Max

Long Durability: >1000 Cycles

Pack Sizes: 3-Piece Kit

WHY CHOOSE THIS KIT?

  • ✔ All-in-One – M-M, M-F, F-F adapters for flexible setups.
  • ✔ Excellent Performance – max VSWR at 1.15:1.
  • ✔ Quick Access – Organized kit saves time during testing.
  • ✔ Field-Ready – Ideal for engineers on the move.

PRODUCT OVERVIEW

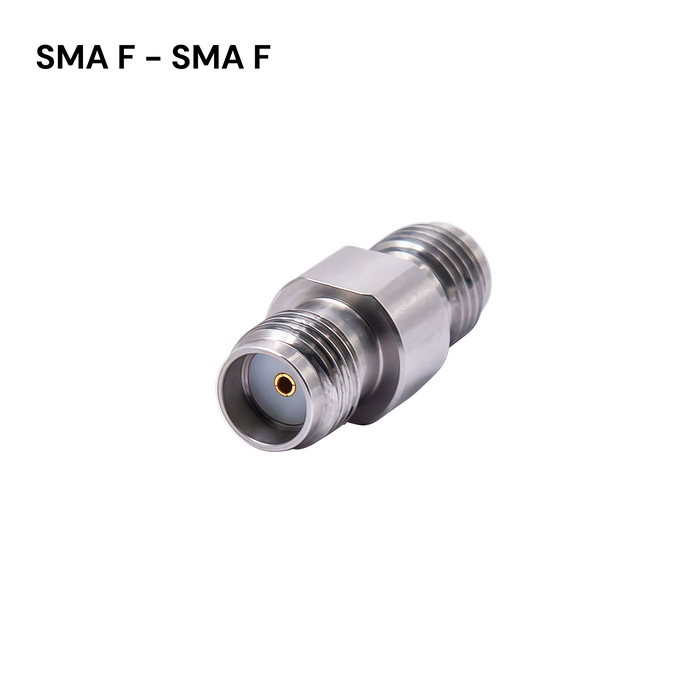

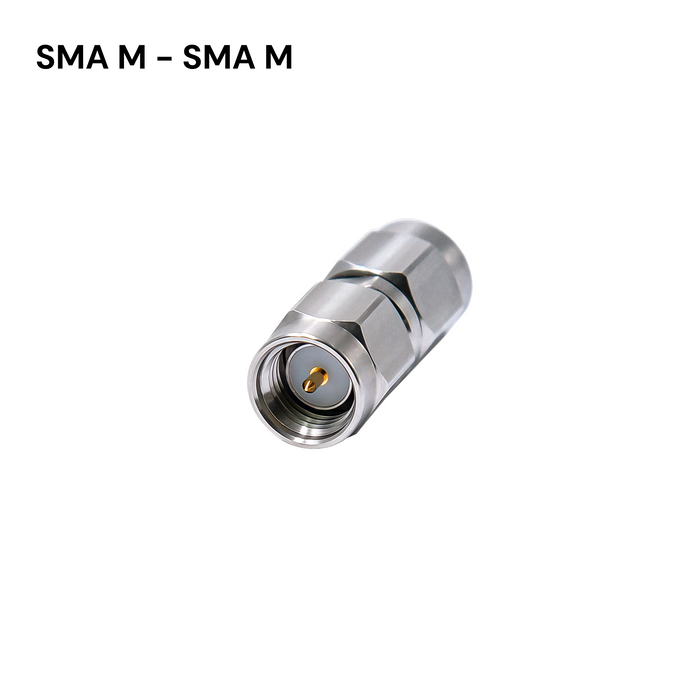

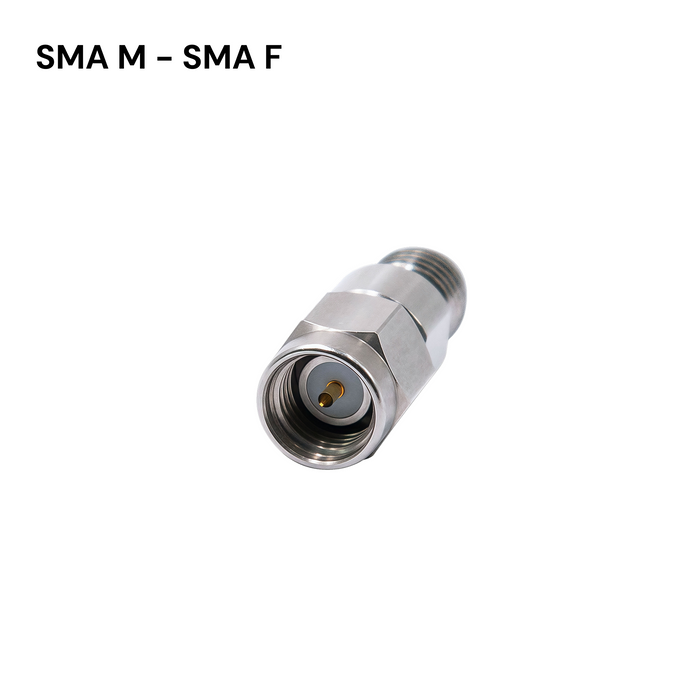

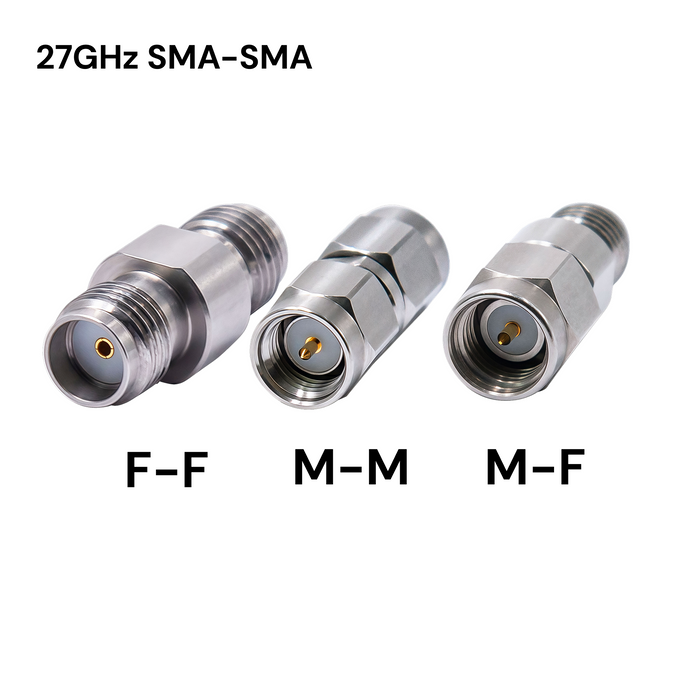

The DC-27GHz 3-Piece Adapter Bundle features the most common SMA to SMA configurations: 1 Male-Male, 1 Male-Female, and 1 Female-Female. Perfect for lab testing, prototyping, or stocking versatile connections, this kit offers engineers a cost-effective, high-performance solution in one convenient package.


SPECIFICATIONS

Frequency Range

DC-27GHz

VSWR

1.15:1 max

Insertion Loss

0.25dB max

Durability

>1000 Cycles min

Insulation Resistance

>5000 MΩ min

Operating Temperature

-65°C ~ +165°C

Body Material

Stainless Steel Passivated

Center Conductor

Gold-Plated Brass (M-M); Gold-Plated Beryllium Copper (M-F, F-F)

Dielectric

PTFE (M-M); PEI & PTFE (M-F, F-F)


APPLICATIONS

RF Testing & Development.

Ensures precise signal integrity for high-frequency measurements.

Telecom & Wireless Networks

Enables reliable high-speed data transmission and optimized signal routing in communication infrastructure.

Medical & Precision RF Devices

Supports sensitive RF applications requiring high accuracy.
