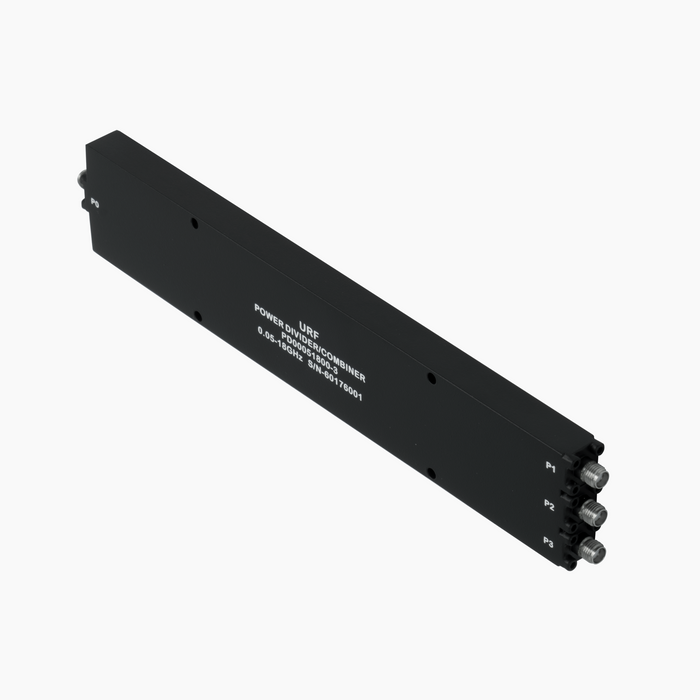

3-Way Power Divider/Combiner, 0.05-18GHz, SMA Female

3-Way Power Divider/Combiner, 0.05-18GHz, SMA Female

SKU PD00051800-3
Availability:
Only 5 left!
Availability:
Only 2 left!
$895.00 - $4,250.00
$895.00
$895.00 - $4,250.00
$895.00

Low VSWR: 2.40:1 typ @0.05-0.5 GHz, 1.40:1 max @0.5-18 GHz

Low Insertion Loss: 2.1 dB max

High Isolation: 10 dB typ @0.05-0.5 GHz, 18 dB min @0.5-18 GHz

Amplitude Unbalance: ±0.5 dB max

Phase Unbalance: ±5° max

Power: CW: FOR 30 W max, REV 5 W max; Peak: 3000 W max

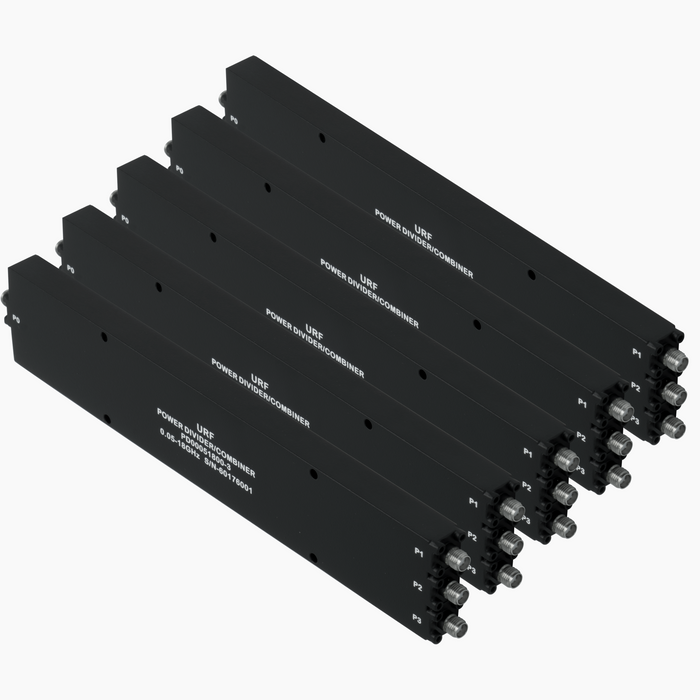

Pack Sizes: 1 Pack

WHY CHOOSE THIS POWER DIVIDER?

  • ✔ Broad Frequency Range – 0.05 to 18GHz for versatile RF applications.
  • ✔ Low Insertion Loss – 2.1 dB max for efficient power transfer.
  • ✔ Optimized Matching – 2.40:1 typ @0.05-0.5 GHz, 1.40:1 max @0.5-18 GHz for minimal signal reflection.
  • ✔ High Isolation – 18dB min reduces interference.
  • ✔ Precision Balance – Amplitude unbalance of ±0.5dB max, phase unbalance of ±5° max for accurate performance across all ports.
  • ✔ Reliable Power Handling – Supports 30W CW, 5W reverse, 3000W peak for demanding use cases.

PRODUCT OVERVIEW

The 3-Way Power Divider/Combiner, 0.05-18GHz, SMA Female ensures stable signal splitting with low insertion loss (2.1 dB max), high isolation (18 dB min), and low VSWR (1.40:1 max). Designed for 30W CW, 5W reverse, 3000W peak handling, it delivers reliable performance across various RF applications, ensuring highly similar amplitude & phase unbalance across all ports for precise signal consistency. Built for durability, this divider ensures consistent signal distribution in both lab and field environments.


SPECIFICATIONS

Frequency Range

0.05 – 18 GHz

Sum VSWR

2.40:1 typ @0.05-0.5 GHz, 1.40:1 max @0.5-18 GHz

Distri. VSWR

2.40:1 typ @0.05-0.5 GHz, 1.40:1 max @0.5-18 GHz

Insertion Loss¹

2.1 dB max

Amp. Unbalance

±0.5 dB max

Phase Unbalance

±5° max

Isolation

10 dB typ @0.05-0.5 GHz, 18 dB min @0.5-18 GHz

Power²

CW: FOR 30 W max, REV 5 W max; Peak: 3000 W max

Weight

290 g max

Dimension³

203.2 mm x 38.8 mm x 12.7 mm (LxWxH)

Interface

Sum: SMA [F], Distri.: SMA [F]

Finishing

Polyurethane Paint

Operating Temperature

-55 ~ +85°C

Storage Temperature

-55 ~ +100°C

  1. Above Theoretical Loss 4.8 dB
  2. VSWR ≤1.2 required for CW; Amp. & phase unbalance required for reversed input signals
  3. Unless otherwise specified, Decimal tolerance: x.±1; .x±0.5; .xx±0.1

APPLICATIONS

Testing & Measurement

Ensures accurate signal distribution in test setups.

Wireless Communication

Supports stable signal splitting for telecom and 5G applications.

Radar & Defense Systems

Enables efficient and consistent power division for radar arrays and defense electronics.
