30-40 GHz Dual-Polarized Quad-Ridged Conical Horn Antenna

30-40 GHz Dual-Polarized Quad-Ridged Conical Horn Antenna

SKU AT300400-DPQR
Availability:
Only 1 left!
$3,800.00 - $3,800.00
$3,800.00
$3,800.00 - $3,800.00
$3,800.00

Low VSWR: 2.00:1 max

Port Isolation: 30 dB min

High Gain 22 dBi typ

Cross Polarization: 20 dB min

Beam Squint: ±2° max

3dB Beamwidth: E Plane: 10-18° typ, H Plane: 9.8-14° typ

Pack Size: 1 Pack

WHY CHOOSE THIS ANTENNA?

  • ✔ Low VSWR – 2.00:1 max
  • ✔ High Port Isolation – 30 dB min
  • ✔ Superior Gain – 22 dBi typ
  • ✔ Enhanced Cross-Polarization – 20 dB min for superior signal separation
  • ✔ Optimized 3 dB Beamwidth – E Plane: 10-18° typ, H Plane: 9.8-14° typ
  • ✔ Durable, Lightweight Build – Aluminum alloy with polyurethane finish for reliability

PRODUCT OVERVIEW

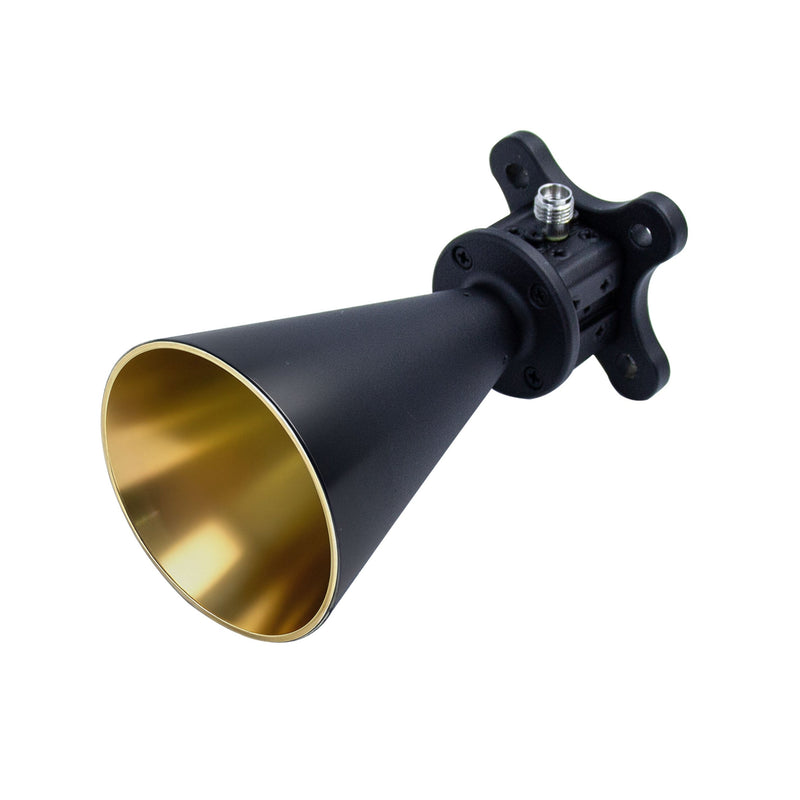

The AT300400-DPQR is a wideband quad-ridged conical horn antenna covering 30–40 GHz with dual linear polarization. Designed for high-performance RF testing, it delivers high typical gain of 22 dBi, low max VSWR (≤2.0:1), and high port isolation (≥30 dB min). Its compact and durable construction makes it ideal for EMC measurements, antenna pattern characterization, and wideband wireless applications.


SPECIFICATIONS

Frequency Range

30-40 GHz

VSWR

2.00:1 max

Port Isolation

30 dB min

Gain

22 dBi typ

Sidelobe

–15 dB typ

Beam Squint

±2° max

3 dB Beamwidth

E Plane: 10-18° typ, H Plane: 9.8-14° typ

Cross Polarization

20 dB min

Weight

130 g max

Dimension¹

50.0 mm x 90.0 mm (Ø xL)

Connector

2.92mm [F], Per IEC 61169

Polarization

Dual-Linear Polarization

Finishing

Polyurethane Paint

Material

Aluminum Alloy

Operating Temperature

–40~+70°C

Storage Temperature

–55~+85°C

Environmental

N/A

Customized

Specifications

1. Unless otherwise specified, decimal tolerance: x.±1; .x±0.5; .xx±0.1


APPLICATIONS

RF Testing & Calibration

Ensures precise high-frequency measurements in RF labs.

EMC Measurement

Provides stable and accurate signal performance for compliance testing.

5G & Wireless Testing

Supports high-frequency signal transmission for next-gen networks.

Satellite Communications

Delivers reliable signal reception for satellite uplinks and downlinks.

Radar & Electronic Warfare (EW)

Offers consistent beam direction and high isolation for long-range detection.
