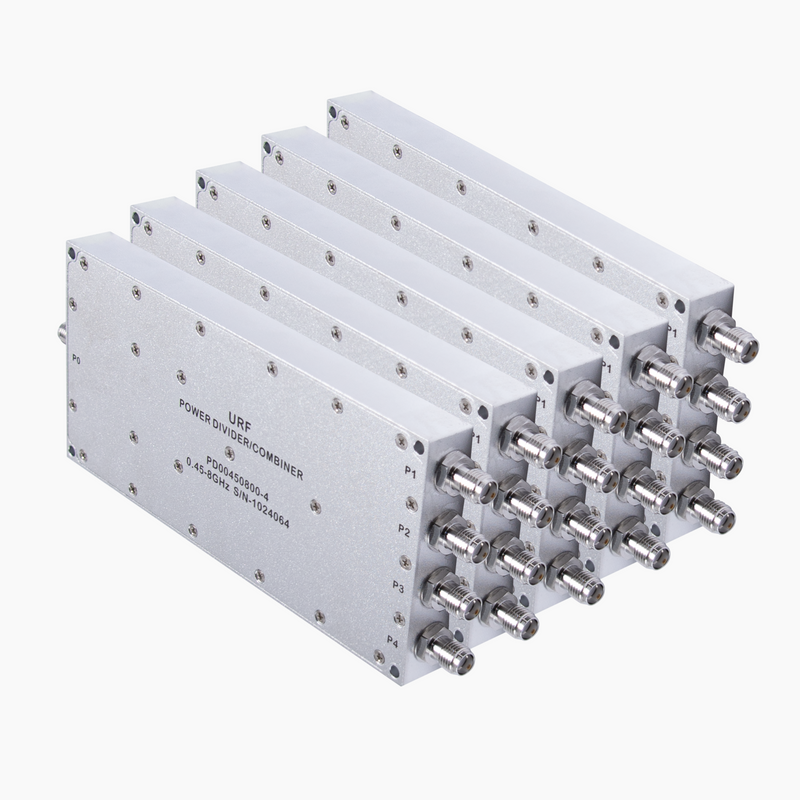

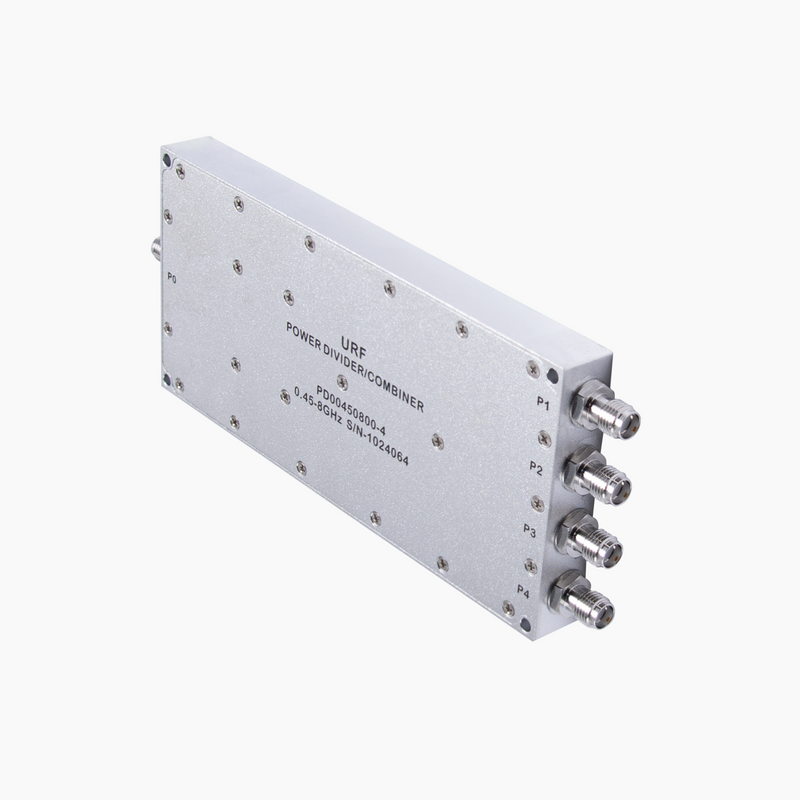

4-Way Power Divider/Combiner, 0.45-8GHz, SMA Female

4-Way Power Divider/Combiner, 0.45-8GHz, SMA Female

SKU PD00450800-4
Availability:
25 in stock, ready to be shipped
Availability:
20 in stock, ready to be shipped
$375.00 - $1,780.00
$375.00
$375.00 - $1,780.00
$375.00

Low VSWR: 1.30:1 max

Low Insertion Loss: 2.2dB max

High Isolation: 18dB min

Amplitude Unbalance: ±0.3dB max

Phase Unbalance: ±4° max

Power: 20W CW FWD, 1W REV, 150W peak max

Pack Size: 1 Pack

WHY CHOOSE THIS POWER DIVIDER?

  • ✔ Broad Frequency Range – 0.45 to 8GHz for versatile RF applications.
  • ✔ Low Insertion Loss – 2.2dB max for efficient power transfer.
  • ✔ Optimized Matching – 1.10:1 typ and 1.30:1 max for minimal signal reflection.
  • ✔ High Isolation – 18dB min reduces interference.
  • ✔ Precision Balance – Amplitude unbalance of ±0.3dB max, phase unbalance of ±4° max for accurate performance across all ports.
  • ✔ Reliable Power Handling – Supports 20W CW, 1W reverse, 150W peak for demanding use cases.

PRODUCT OVERVIEW

The 4-Way Power Divider/Combiner, 0.45-8GHz, SMA Female ensures stable signal splitting with low insertion loss (2.2dB max), high isolation (18dB min), and low VSWR (1.30:1 max). Designed for 20W CW, 1W reverse, 150W peak handling, it delivers reliable performance across various RF applications, ensuring highly similar amplitude & phase unbalance across all ports for precise signal consistency. Built for durability, this divider ensures consistent signal distribution in both lab and field environments.


SPECIFICATIONS

Frequency Range

0.45–8GHz

Sum VSWR

1.10:1 typ/1.30:1 max

Distri. VSWR

1.10:1 typ/1.20:1 max

Insertion Loss¹

2.2dB max

Amp. Unbalance

±0.3dB max

Phase Unbalance

±4° max

Isolation

18dB min

Power²

CW: FOR 20W, REV 1W; Peak: 150W

Weight

165g max

Dimension³

120mm x 56mm x 12mm (LxWxH)

Interface

Sum: SMA [F], Distri.: SMA [F]

Finishing

Sand Blast

Operating Temperature

-40 ~ +70°C

Storage Temperature

-55 ~ +85°C

  1. Above Theoretical Loss 6dB
  2. VSWR ≤1.2 required for CW; Amp. & phase unbalance required for reversed input signals
  3. Unless otherwise specified, Decimal tolerance: x.±1; .x±0.5; .xx±0.1

APPLICATIONS

Testing & Measurement

Ensures accurate signal distribution in test setups.

Wireless Communication

Supports stable signal splitting for telecom and 5G applications.

Radar & Defense Systems

Enables efficient and consistent power division for radar arrays and defense electronics.
