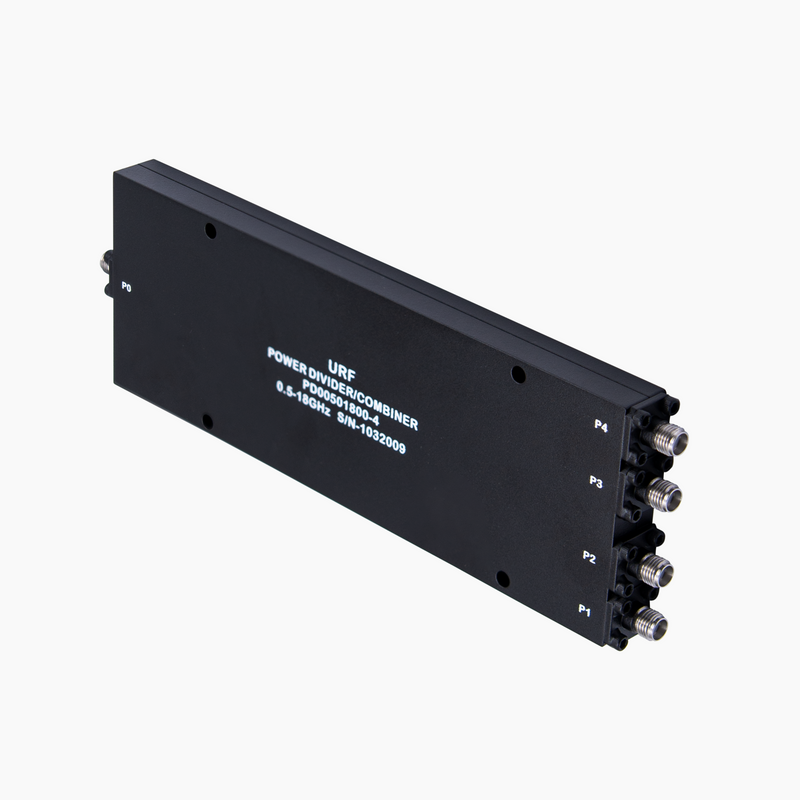

4-Way Power Divider/Combiner, 0.5-18GHz, SMA Female

4-Way Power Divider/Combiner, 0.5-18GHz, SMA Female

SKU PD00501800-4
Availability:
Only 2 left!
Availability:
Only 2 left!
$788.00 - $2,996.00
$788.00
$788.00 - $2,996.00
$788.00

Low VSWR: 1.15:1 typ, 1.50:1 max

Low Insertion Loss: 3.8dB max

High Isolation: 18dB min

Amplitude Unbalance: ±0.4dB max

Phase Unbalance: ±5° max

Power: 30W CW FOR, 5W REV, 3000W peak max

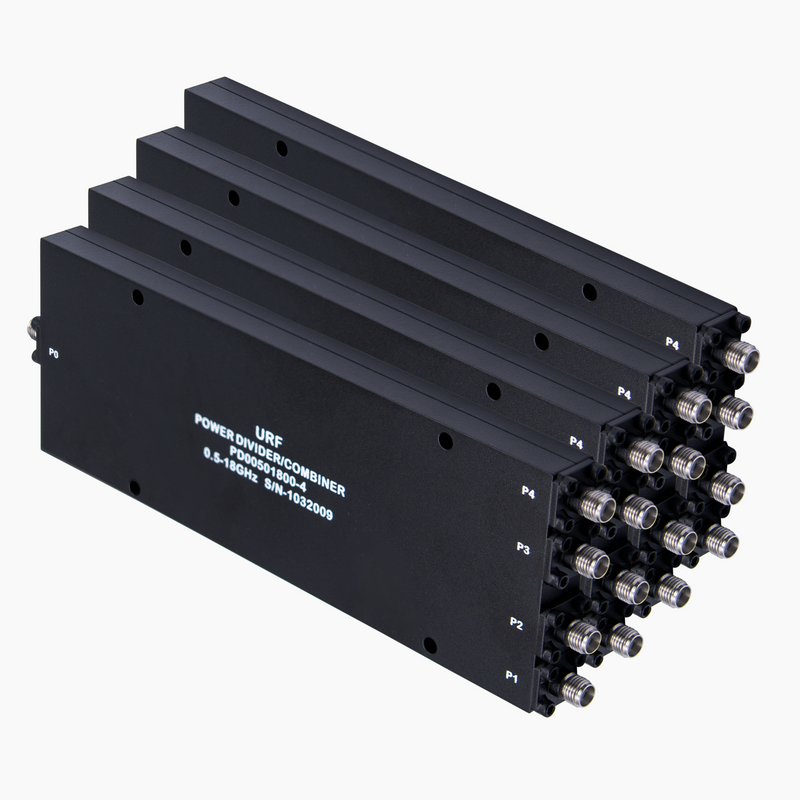

Pack Size: 1 Pack

WHY CHOOSE THIS POWER DIVIDER?

  • ✔ Broad Frequency Range – 0.5 to 18GHz for versatile RF applications.
  • ✔ Low Insertion Loss – 3.8dB max for efficient power transfer.
  • ✔ Optimized Matching – 1.15:1 typ, 1.50:1 max for minimal signal reflection.
  • ✔ High Isolation – 18dB min reduces interference.
  • ✔ Precision Balance – Amplitude unbalance of ±0.4dB max, phase unbalance of ±5° max for consistent signal across all ports.
  • ✔ Reliable Power Handling – Supports 30W CW, 5W reverse, 3000W peak for demanding use cases.

PRODUCT OVERVIEW

The 4-Way Power Divider/Combiner, 0.5–18GHz, SMA Female ensures stable signal splitting with with 4 output signals at a low insertion loss (3.8dB max), high isolation (18dB min), and low VSWR (1.15:1 typ, 1.50:1 max). Designed for 30W CW, 5W reverse, and 3000W peak handling, it delivers reliable performance across various RF applications. This divider ensures consistent signal distribution in both lab and field environments.


SPECIFICATIONS

Frequency Range

0.5-18GHz

Sum VSWR

1.50:1 max

Distribution Port VSWR

1.50:1 max

Insertion Loss¹

3.8dB max

Amplitude Unbalance

±0.4dB max

Phase Unbalance

±5° max

Isolation

18dB min

Power²

CW: FOR 30W, REV 5W; Peak: 3000W

Weight

330g

Dimension³

158.5mm x 56.5mm x 12.7mm (LxWxH)

Interface

Sum: SMA [F], Distri.: SMA [F]

Finishing

Polyurethane Paint

Operating Temperature

-55~+85°C

Storage Temperature

-55~+100°C

  1. Above Theoretical Loss 6dB
  2. VSWR ≤1.2 required for CW; Amp. & phase unbalance required for reversed input signals
  3. Unless otherwise specified, Decimal tolerance: x.±1; .x±0.5; .xx±0.1

APPLICATIONS

Testing & Measurement

Ensures accurate signal distribution in test setups.

Wireless Communication

Supports stable signal splitting for telecom and 5G applications.

Radar & Defense Systems

Enables efficient power division for radar arrays and defense electronics.
