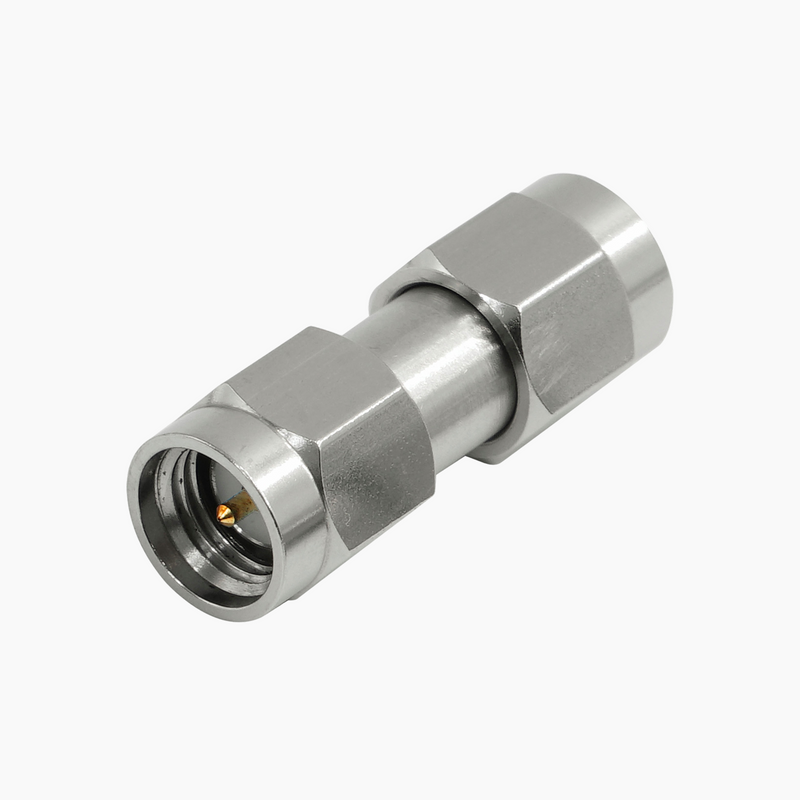

40dB Fixed Attenuator, DC-18GHz, SMA Male-Male, 2W

40dB Fixed Attenuator, DC-18GHz, SMA Male-Male, 2W

SKU FA18G-2W40-SMSM-02
Availability:
25 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
$90.00 - $252.00
$90.00
$90.00 - $252.00
$90.00

Attenuation Accuracy: ±0.1dB typ

Excellent VSWR: 1.06:1 typ, 1.25:1 max

Power: 2W

Material: Stainless Steel

Operating Temperature: -55° ~ +125°C

Pack Size: 2 Pack

WHY CHOOSE THIS ATTENUATOR?

  • ✔ Precise Attenuation – ±0.1dB typ
  • ✔ Low VSWR – 1.06:1 typ, 1.25:1 max
  • ✔ High Power Handling – Rated for 2W continuous power
  • ✔ Reliable SMA Connectors – SMA Male-Male interface for secure and repeatable connections.
  • ✔ Durable Construction – Built for long-term stability in lab and field environments.

PRODUCT OVERVIEW

Simplify signal control with our 40dB Fixed Attenuator, engineered for accuracy and reliability across a DC to 18GHz frequency range. Featuring SMA Male-Male connectors, it has a precise attenuation of ±0.1dB typ with a 1.06:1 typ, 1.25:1 max VSWR, handling up to 2W of power.


SPECIFICATIONS

Frequency Range

DC-18GHz‬

VSWR

1.06:1 typ/1.25:1 max‬

Attenuation

40dB typ‬‬

Attenuation Accuracy

−0.6dB to +0.8dB max

Impedance

50Ω

Interface

SMA[M] - SMA[M]

Power

≤2W

Dimension

Φ9.0×24.6mm

Weight

≤10g

Material

Stainless Steel

Finishing

BeCu, Gold Plating

Operating Temperature

−55 ~ +125°C


APPLICATIONS

Test & Measurement

Ensures accurate signal calibration in RF labs, network analyzers, spectrum analyzers, and signal generators.

Impedance Matching

Minimizes signal reflection and optimizes power transfer between components, enhancing RF system efficiency.

Signal Conditioning

Protects amplifiers and receivers from signal overload, maintaining optimal performance.
