DC-40GHz 2.92mm to 2.92mm 3-Piece Adapter Kit

DC-40GHz 2.92mm to 2.92mm 3-Piece Adapter Kit

SKU A40G-292-KIT
Availability:
50 in stock, ready to be shipped
$186.00 - $186.00
$186.00
$186.00 - $186.00
$186.00

Complete Set: M-M, M-F, F-F

Low VSWR: 1.04:1 typ, 1.15:1 max

Low Insertion Loss: 0.3dB max

Durability: >1000 cycles

Pack Sizes: 3-Piece Kit

WHY CHOOSE THIS KIT?

  • ✔ All-in-One – M-M, M-F, F-F adapters for flexible setups.
  • ✔ Excellent Performance – max VSWR at 1.15:1.
  • ✔ Quick Access – Organized kit saves time during testing.
  • ✔ Field-Ready – Ideal for engineers on the move.

PRODUCT OVERVIEW

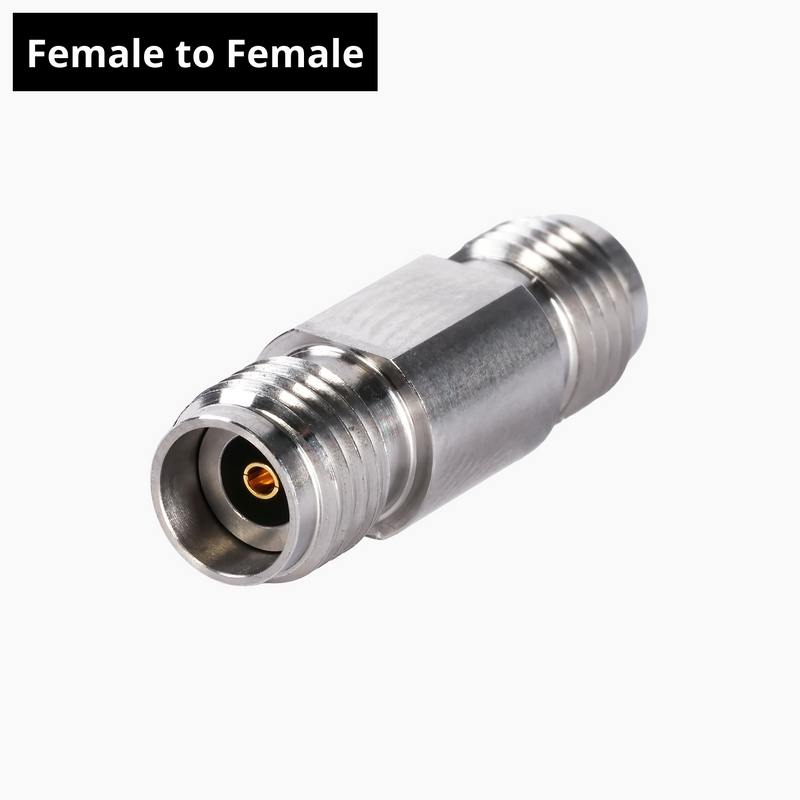

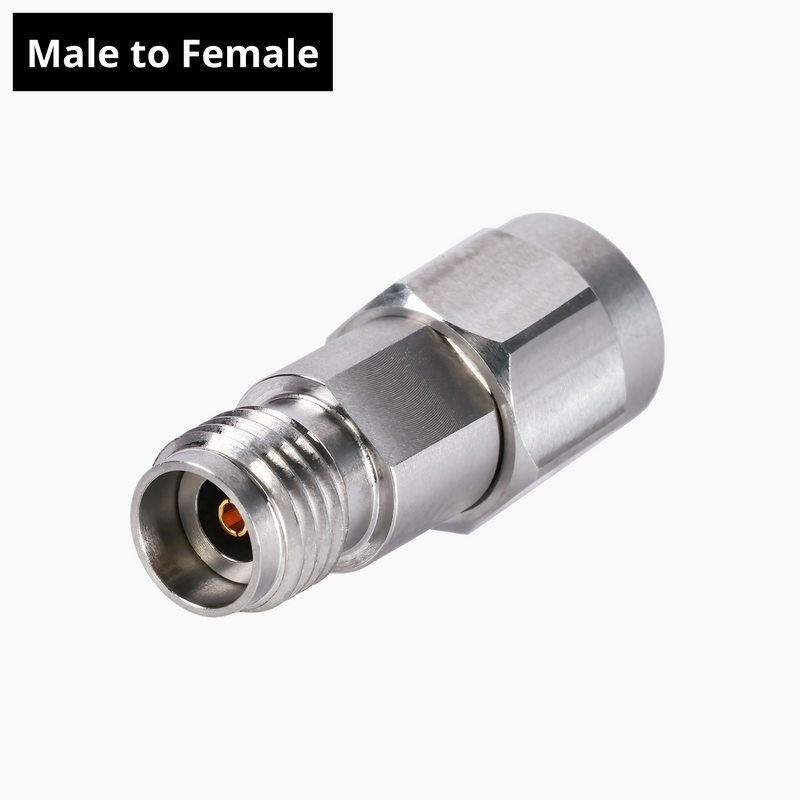

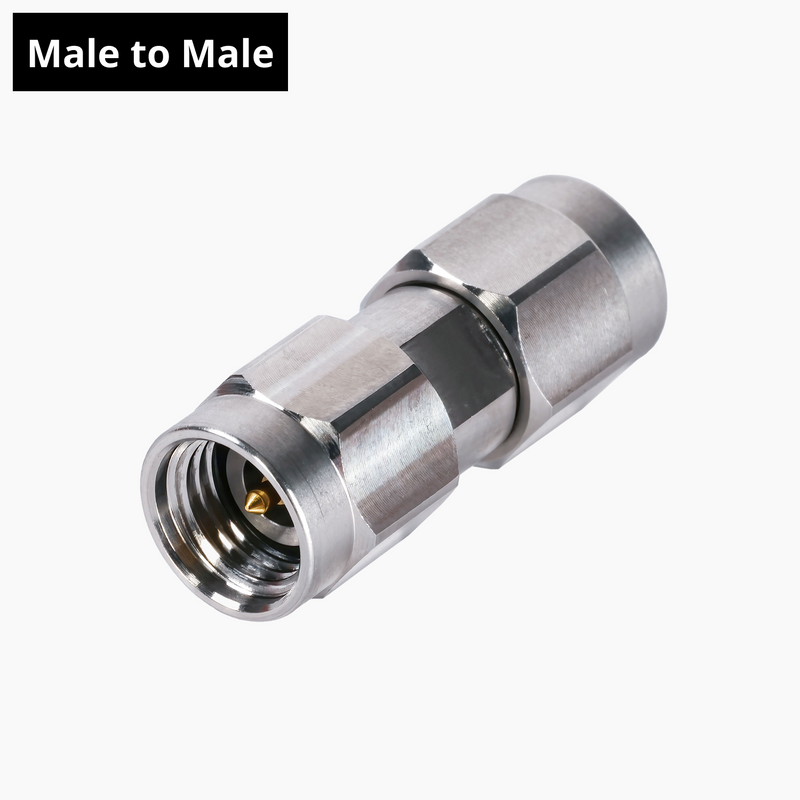

The DC-40GHz 3-Piece Adapter Bundle features the most common 2.92mm to 2.92mm configurations: 1 Male-Male, 1 Male-Female, and 1 Female-Female. Perfect for lab testing, prototyping, or stocking versatile connections, this kit offers engineers a cost-effective, high-performance solution in one convenient package.


SPECIFICATIONS

Frequency Range

DC-40GHz

VSWR

1.04:1 typ / 1.15:1 max

Insertion Loss

0.3dB max

Durability

>1000 Cycles min

Insulation Resistance

>5000 MΩ min

Operating Temperature

-65°C ~ +165°C

Body Material

Stainless Steel Passivated

Center Conductor

Beryllium Copper Gold Plated (M-F, F-F)| Brass Gold Plated (M-M)

Dielectric

PEI


APPLICATIONS

RF Testing & Development.

Ensures consistent connectivity for high-frequency test setups.

Field & Lab Use.

Compact, organized kit for engineers needing quick, high-efficiency adapter solutions.
