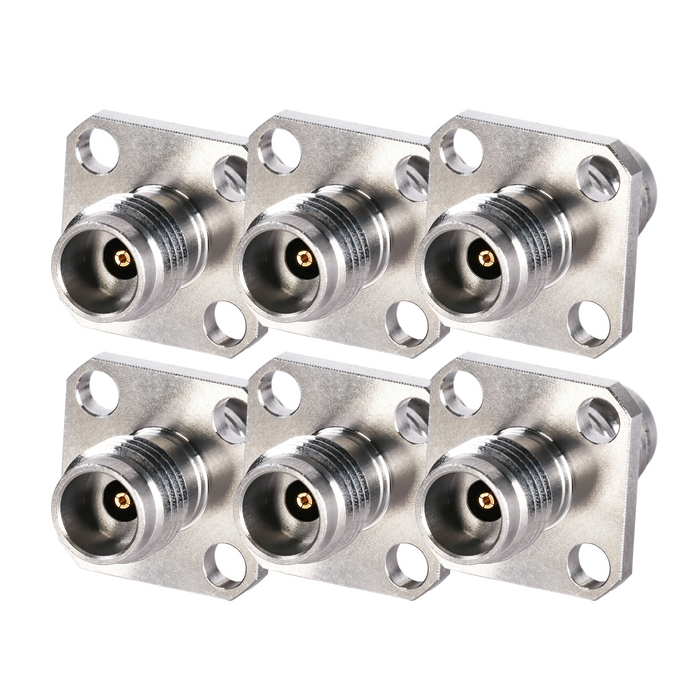

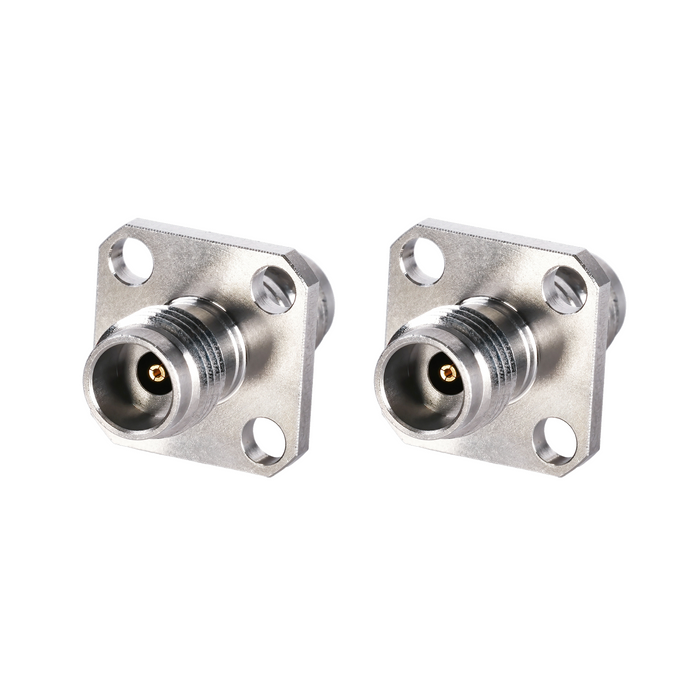

DC-50GHz 2.4mm Female - 2.4mm Female 4-Hole Flange Adapter

DC-50GHz 2.4mm Female - 2.4mm Female 4-Hole Flange Adapter

SKU A50G-24FFF-02
Availability:
20 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
$260.00 - $744.00
$260.00
$260.00 - $744.00
$260.00

Ultra Wideband: DC to 50GHz

Low VSWR: 1.05:1 typ, 1.15:1 max

Low Insertion Loss: 0.35dB max

Configuration: Secure 4-hole flange mount

Durability: >1000 mating cycles

Material: BeCu gold plated conductor

Pack Sizes: 2 Pack

PRODUCT OVERVIEW

DC-50GHz 2.4mm Female - 2.4mm Female 4-Hole Flange Adapter with a stainless steel passivated body and beryllium copper gold-plated center conductor. Features 1.05:1 typ, 1.15:1 max VSWR, 0.35dB insertion loss, and >1000 mating cycle durability. Designed for panel-mounted RF applications, ensuring low-loss, high-performance solution.


WHY CHOOSE THIS ADAPTER?

  • ✔ Secure Flange Mounting – Ensures stable installation for panel-mounted and test applications.
  • ✔ Low VSWR – 1.05:1 typ, 1.15:1 max, one of the best VSWR performances in the industry.
  • ✔ Minimal Insertion Loss – 0.35dB max for efficient power transfer.
  • ✔ High Durability – Rated for >1000 mating cycles for long-term reliability.
  • ✔ Rugged Construction – Stainless steel passivated body for corrosion resistance.

SPECIFICATIONS

Frequency Range

DC-50GHz

VSWR

1.05:1 typ / 1.15:1 max

Insertion Loss

0.35dB max

Durability

>1000 Cycles min

Insulation Resistance

>3000 MΩ min

Operating Temperature

-65°C ~ +165°C

Body Material

Stainless Steel Passivated

Center Conductor

Beryllium Copper Gold Plated

Dielectric

PEI


APPLICATIONS

RF Testing & Development.

Provides a secure 4-hole flange mount for stable high-frequency connections in test environments.

Telecom & Wireless Networks

Supports low-loss signal transmission in high-frequency communication networks.

Precision RF Devices

Ensures reliable, minimal-loss connectivity for sensitive RF applications.
