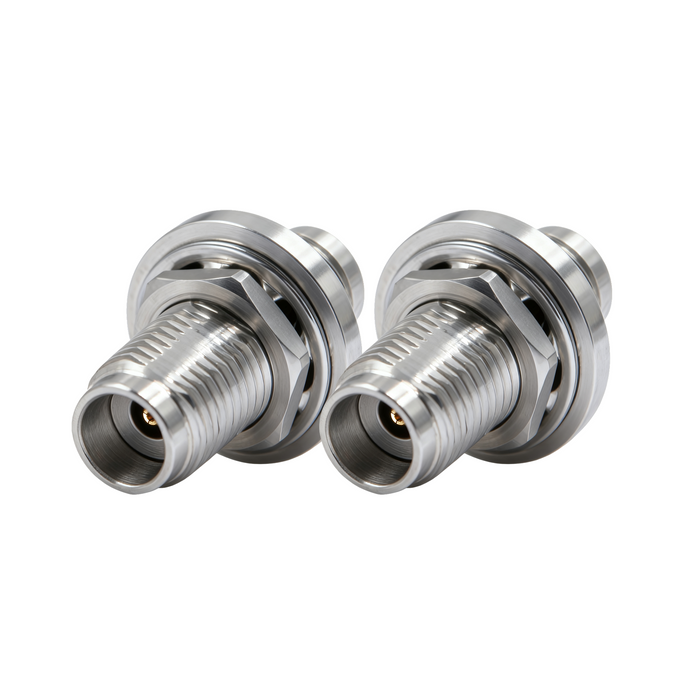

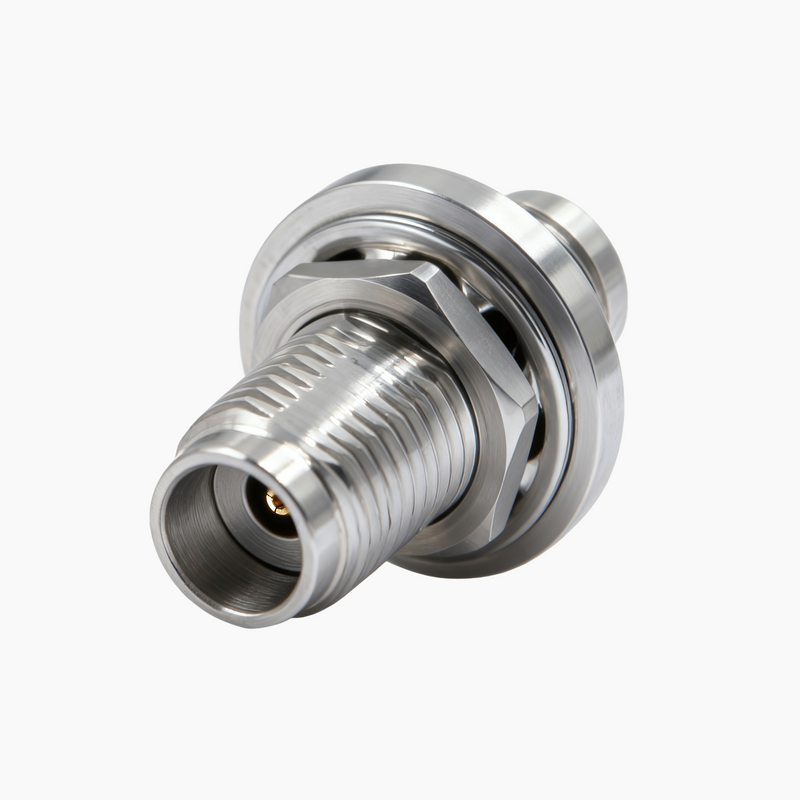

DC-50GHz 2.4mm Female - 2.4mm Female Bulkhead Adapter

DC-50GHz 2.4mm Female - 2.4mm Female Bulkhead Adapter

SKU A50G-24FFY-06
Availability:
20 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
$260.00 - $744.00
$744.00
$260.00 - $744.00
$744.00

Ultra Wideband: DC to 50GHz

Low VSWR: 1.06:1 typ, 1.20:1 max

Low Insertion Loss: 0.35dB max

Configuration: Bulkhead

Durability: >1000 mating cycles

Material: BeCu gold plated conductor

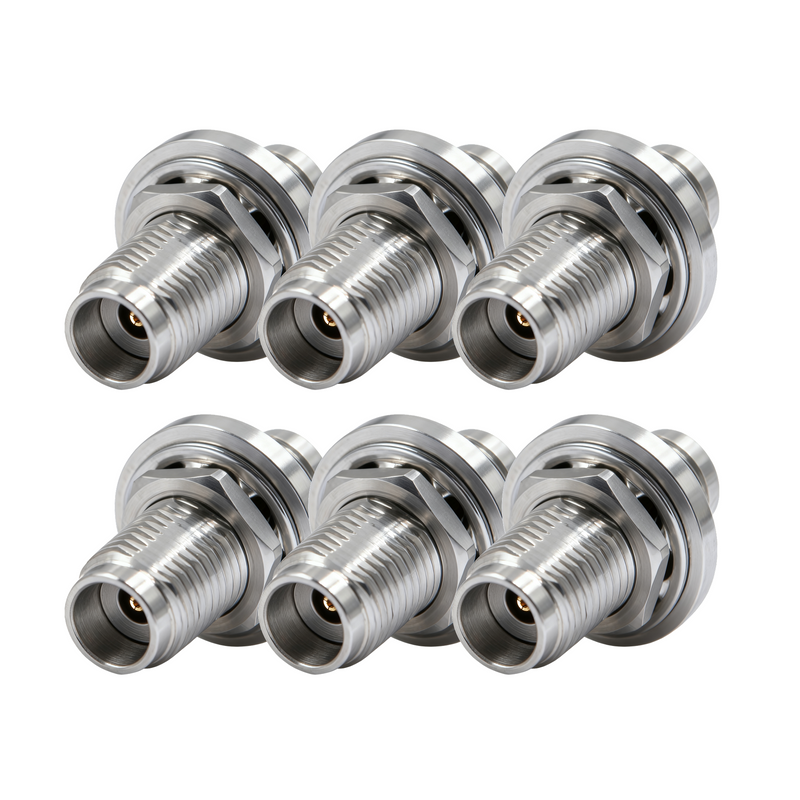

Pack Sizes: 6 Pack

PRODUCT OVERVIEW

DC-50GHz 2.4mm Female - 2.4mm Female Bulkhead Adapter is engineered for secure, high-performance signal transitions in RF systems. Features 1.06:1 typ, 1.20:1 max VSWR, 0.35dB insertion loss, and >1000 mating cycle durability. This adapter offers excellent durability and performance in demanding RF applications.


WHY CHOOSE THIS ADAPTER?

  • ✔ Panel-Mounted RF Systems – Enables secure panel mounting for stable and low-loss connections.
  • ✔ Low VSWR – 1.06:1 typ, 1.15:1 max, one of the best VSWR performances in the industry.
  • ✔ Minimal Insertion Loss – 0.35dB max for efficient power transfer.
  • ✔ High Durability – Rated for >1000 mating cycles for long-term reliability.
  • ✔ Rugged Construction – Stainless steel passivated body for corrosion resistance.

SPECIFICATIONS

Frequency Range

DC-50GHz

VSWR

1.06:1 typ / 1.15:1 max

Insertion Loss

0.35dB max

Durability

>1000 Cycles min

Insulation Resistance

>3000 MΩ min

Operating Temperature

-65°C ~ +165°C

Body Material

Stainless Steel Passivated

Center Conductor

Beryllium Copper Gold Plated

Dielectric

PEI


APPLICATIONS

Panel-Mounted RF Systems.

Provides a secure, stable connection in telecom cabinets and RF enclosures.

RF Testing & Development

Ensures reliable signal transmission for lab and field testing.

Telecom & Wireless Networks

Supports high-performance signal routing in communication infrastructure.
