DC-50GHz 2.4mm Male - 2.4mm Female Adapter

DC-50GHz 2.4mm Male - 2.4mm Female Adapter

SKU A50G-24MF-02
Availability:
20 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
$220.00 - $630.00
$220.00
$220.00 - $630.00
$220.00

Ultra Wideband: DC-67GHz

Low VSWR: 1.05:1 typ, 1.15:1 max

Low Insertion Loss: 0.35dB max

Durability: >1000 Cycles

Pack Sizes: 2 Pack

PRODUCT OVERVIEW

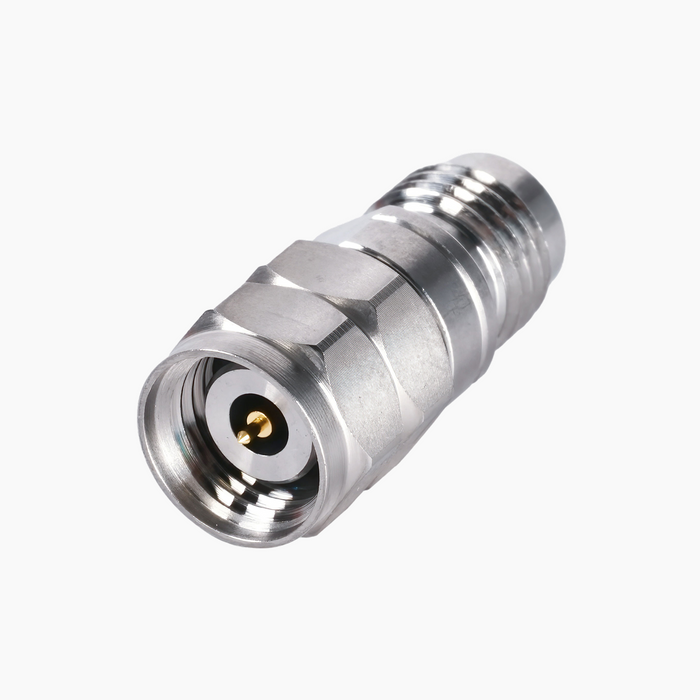

The 2.4mm Male - 2.4mm Female Coaxial Adapter is engineered for DC to 50GHz applications, offering low insertion loss (0.35dB max) and 1.05:1 typ or 1.15:1 max VSWR for superior signal integrity. Designed for high-frequency lab testing, telecom systems, and precision RF applications, this adapter ensures stable and repeatable performance. Constructed from reinforced stainless steel, it withstands >1000 mating cycles, making it a long-lasting, high-precision solution for RF professionals.


SPECIFICATIONS

Frequency Range

DC–50GHz

VSWR

1.05:1 typ / 1.15:1 max

Insertion Loss

0.35dB max

Durability

>1000 Cycles min

Insulation Resistance

>3000 MΩ min

Operating Temperature

-65°C to +165°C

Body Material

Stainless Steel Passivated

Center Conductor

Gold-Plated BeCu

Dielectric

PEI


APPLICATIONS

RF Testing & Development

Provides stable, high-performance signal transitions in test setups.

Telecom & Wireless Networks

Ensures minimal signal loss for reliable high-speed communications.

Medical & Precision RF Devices

Supports sensitive RF applications requiring high accuracy.
