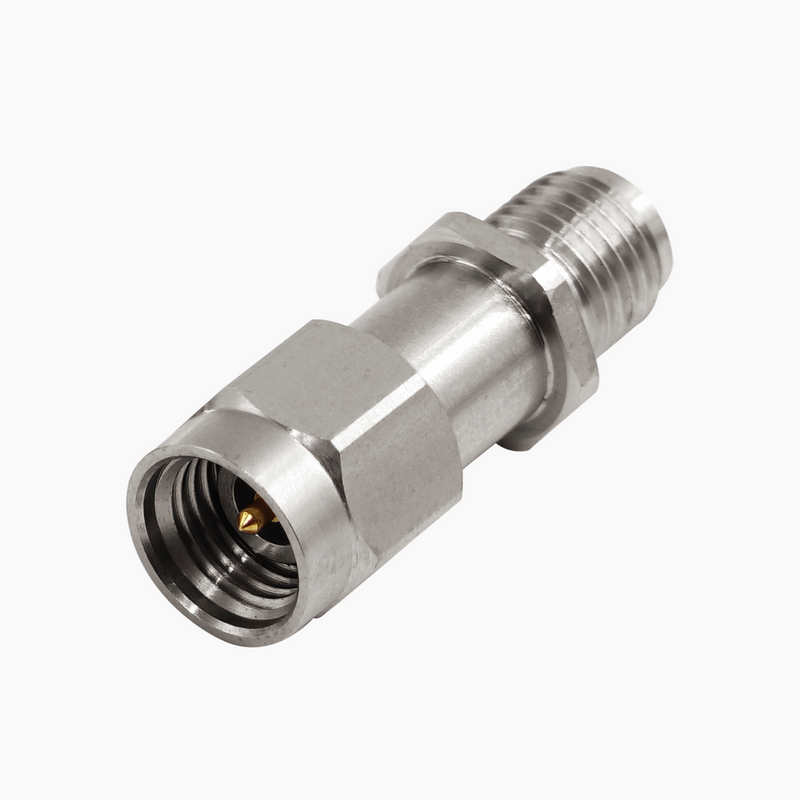

5dB Fixed Attenuator, DC-40GHz, 2.92mm Male-Female, 2W

5dB Fixed Attenuator, DC-40GHz, 2.92mm Male-Female, 2W

SKU FA40G-2W05-KMKF-02
Availability:
25 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
$370.00 - $1,056.00
$370.00
$370.00 - $1,056.00
$370.00

Attenuation Accuracy: ±0.5dB typ, ±0.8dB max

Excellent VSWR: 1.10:1 typ, 1.25:1 max

Power: 2W

Material: Stainless Steel (Passivated)

Operating Temperature: -55° ~ +125°C

Pack Size: 2 Pack

WHY CHOOSE THIS ATTENUATOR?

  • ✔ Precise Attenuation – ±0.5dB typ, ±0.8dB max
  • ✔ Low VSWR – 1.10:1 typ, 1.25:1 max
  • ✔ High Power Handling – Rated for 2W continuous power
  • ✔ 2.92mm Male-Female Connectors – Precision, power, and durability for >18GHz applications

PRODUCT OVERVIEW

Simplify signal control with our 5dB Fixed Attenuator, engineered for accuracy and reliability across a DC to 40GHz frequency range. Featuring 2.92mm Male-Female connectors, it has a precise attenuation of ±0.5dB typ with a 1.10:1 typ, 1.25:1 max VSWR, handling up to 2W of power.


SPECIFICATIONS

Frequency Range

DC–40GHz

VSWR

1.10:1 typ / 1.25:1 max

Attenuation

5dB typ

Attenuation Accuracy

−0.8dB to +0.8dB max

Impedance

50Ω

Power

≤2W

Durability

≥500 Cycles

Weight

≤5g

Dimension¹

Φ9×22.4mm

Interface

2.92mm[M] - 2.92mm[F]

Outer Conductor

Stainless Steel, Passivated

Center Conductor

BeCu/Brass, Gold Plating

Dielectric

PEI

Operating Temperature

−55 ~ +125°C

1. Unless otherwise specified, decimal tolerance: x.±0.3


APPLICATIONS

Test & Measurement

Provides precise signal calibration for network analyzers, spectrum analyzers, and signal generators.

Impedance Matching

Reduces signal reflection, optimizing RF system efficiency.

Signal Conditioning

Prevents amplifier and receiver overload, ensuring stable performance.
