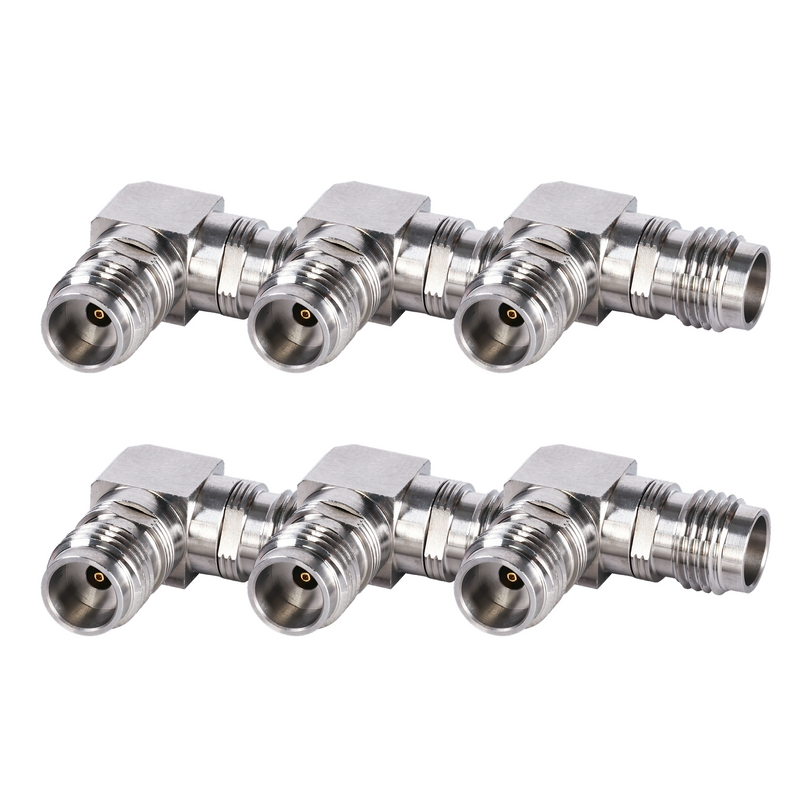

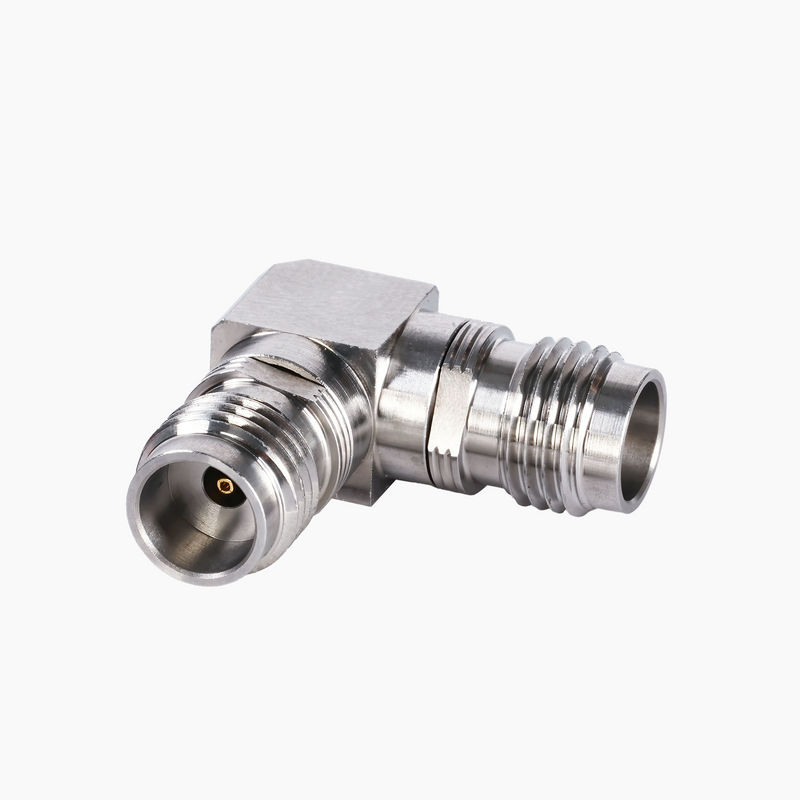

DC-67GHz 1.85mm Female - 1.85mm Female 90° Right Angle Adapter

DC-67GHz 1.85mm Female - 1.85mm Female 90° Right Angle Adapter

SKU A67G-185FFW-02
Availability:
20 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
$776.00 - $2,214.00
$776.00
$776.00 - $2,214.00
$776.00

Ultra Wideband: DC to 67GHz

Low VSWR: 1.08:1 typ, 1.25:1 max

Low Insertion Loss: 0.5dB max

Configuration: 90° right angle

Durability: >1000 mating cycles

Material: Brass & BeCu gold plated conductor

Pack Sizes: 2 Pack

PRODUCT OVERVIEW

DC-67GHz 1.85mm Female - 1.85mm Female 90° Right Angle Adapter features 1.10:1 typ, 1.25:1 max VSWR, 0.8dB insertion loss, and >1000 mating cycle durability. Designed for panel-mounted RF applications, ensuring low-loss, high-performance solution.


WHY CHOOSE THIS ADAPTER?

  • ✔ 90° Right-Angle Design – Ideal for space-constrained applications and high-density RF connection setups.
  • ✔ Low VSWR – 1.10:1 typ, 1.25:1 max for superior signal integrity.
  • ✔ Minimal Insertion Loss – 0.8dB max for efficient power transfer.
  • ✔ High Durability – Rated for >1000 mating cycles for long-term reliability.
  • ✔ Rugged Construction – Stainless steel passivated body for corrosion resistance.

SPECIFICATIONS

Frequency Range

DC-67GHz

VSWR

1.10:1 typ / 1.25:1 max

Insertion Loss

0.8dB max

Durability

>1000 Cycles min

Insulation Resistance

>2000 MΩ min

Operating Temperature

-65°C ~ +165°C

Body Material

Stainless Steel Passivated

Center Conductor

Brass & Beryllium Copper Gold Plated

Dielectric

PEI & PTFE


APPLICATIONS

RF Testing & Development.

Provides a stable 90° interface for high-frequency test setups.

Telecom & Wireless Networks

Supports high-speed signal transmission in compact installations.

Aerospace

Ensures reliable performance in radar, satellite, and EW applications.
