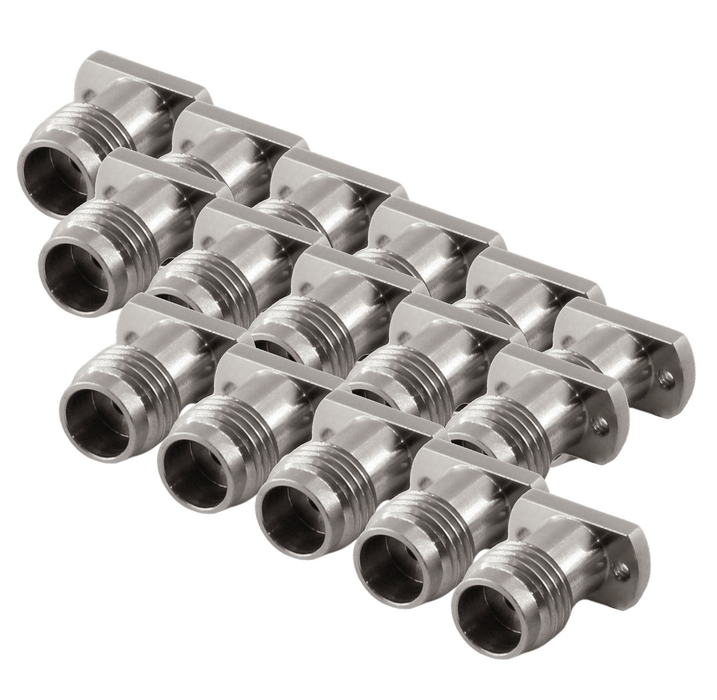

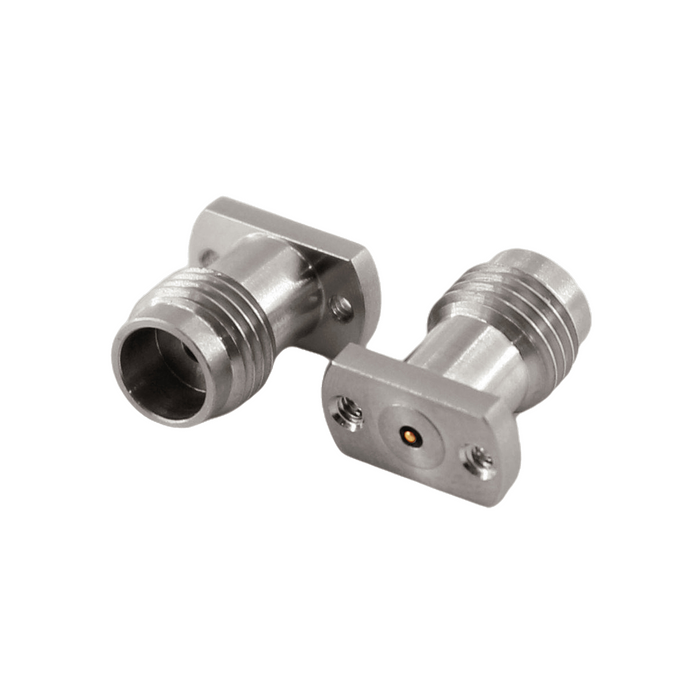

DC-67GHz 1.85mm Female Solderless PCB Compression Mount Connector

DC-67GHz 1.85mm Female Solderless PCB Compression Mount Connector

SKU C67-185F2-CPCB-100
Availability:
50 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
$720.00 - $4,100.00
$4,100.00
$720.00 - $4,100.00
$4,100.00

Impedance: 50Ω

VSWR: 1.09:1 typ / 1.30:1 max

Insertion Loss: ≤0.05 × √f dB (0≤f≤67GHz)

Durability: ≥500 mating cycles

Material: Stainless steel (passivated), BeCu center

Dielectric: PEI

Mounting Type: PCB Compression Mount, 2-Hole Flange

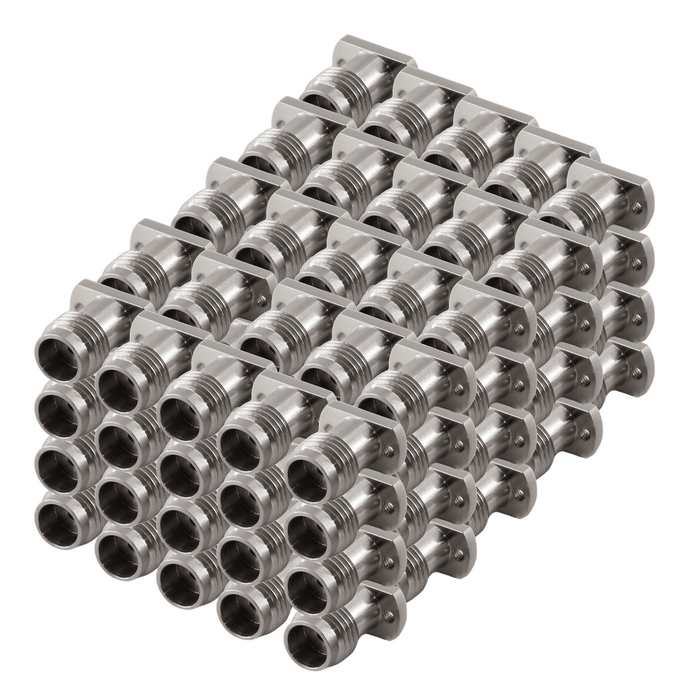

Pack Size: 100 Pack

PRODUCT OVERVIEW

The DC-67GHz 1.85mm Female Solderless PCB Compression Mount Connector delivers exceptional high-performance solution for RF, mmWave, and high-speed digital applications. With low insertion loss (≤0.05 × √f dB (0≤f≤67GHz)) and 1.09:1 typ / 1.30:1 max, it ensures signal integrity and precision impedance matching. Built with Stainless steel (passivated) outer conductor, BeCu center conductor, and PEI dielectric, this connector offers durability and stable electrical performance. The PCB compression mount with a 2-hole flange ensures a secure and repeatable installation, making it ideal for high-frequency PCB applications in 5G, aerospace, and RF test systems.


WHY CHOOSE THIS CONNECTOR?

  • ✔ Ultra-Wideband Performance – Supports DC-67GHz for high-frequency applications.
  • ✔ Precision RF Design – Low insertion loss (≤0.05 × √f dB (0≤f≤67GHz)) for minimal signal degradation.
  • ✔ Optimized Impedance Matching – Maintains 1.09:1 typ / 1.30:1 max for stable RF connections.
  • ✔ Rugged Build & Electrical Stability – Stainless steel outer conductor, BeCu center conductor, and PEI dielectric for durability and signal integrity.
  • ✔ Reliable PCB Mounting – Compression mount with 2-hole flange for secure, repeatable installation.

SPECIFICATIONS

Frequency Range

DC–67GHz

VSWR

1.09:1 typ / 1.3:1 max

Insertion Loss

≤0.05 × √f dB (0≤f≤67GHz)

Durability

≥500 Cycles

Insulation Resistance

≥3000 MΩ

Withstand Voltage

Dielectric: ≥500V

Dimension

Φ10.00 × 11.15 mm

Weight

<3g

Interface

1.85mm [F], Per IEC 61169

Panel Mount Method

Flange

Operating Temperature

–55°C ~ +165°C

Material

Outer: SUS303 stainless steel (JIS G4303)
Center: C17300 BeCu (ASTM-B196)

Dielectric

PEI (ASTM-D5205)

Finishing

Outer: Passivated (ASTM-A967/A967M)
Center: Gold Plating (MIL-G-45204)


APPLICATIONS

High-Frequency PCB Integration.

Ideal for RF/microwave designs requiring minimal signal loss.

5G & mmWave Systems

Supports next-gen wireless and broadband applications.

Aerospace & Defense

Designed for radar, electronic warfare, and high-frequency communication.

RF Test & Measurement

Compatible with precision testing environments and VNA calibrations.

High-Speed Data Transmission

Enables reliable connectivity in optical and high-speed digital systems.
