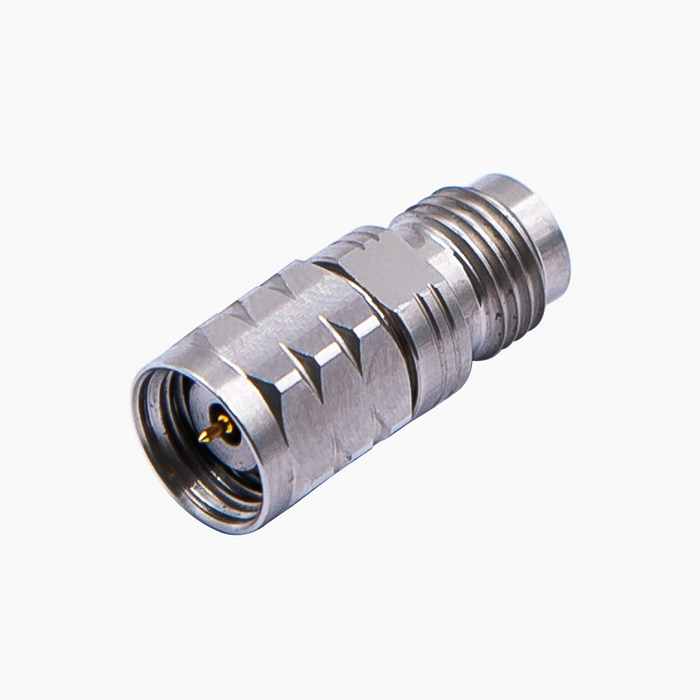

DC-67GHz 1.85mm Male - 1.85mm Female Adapter

DC-67GHz 1.85mm Male - 1.85mm Female Adapter

SKU A67G-185MF-02
Availability:
20 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
$478.00 - $1,374.00
$478.00
$478.00 - $1,374.00
$478.00

Ultra Wideband: DC-67GHz

Low VSWR: 1.05:1 typ, 1.20:1 max

Low Insertion Loss: 0.5dB max

Durability: >1000 Cycles

Pack Sizes: 2 Pack

PRODUCT OVERVIEW

The 1.85mm Male - 1.85mm Female Coaxial Adapter is engineered for DC to 67GHz applications, offering low insertion loss (0.5dB max) and 1.05:1 typ or 1.20:1 max VSWR for superior signal integrity. Designed for high-frequency lab testing, telecom systems, and precision RF applications, this adapter ensures stable and repeatable performance. Constructed from reinforced stainless steel, it withstands >1000 mating cycles, making it a long-lasting, high-precision solution for RF professionals.


SPECIFICATIONS

Frequency Range

DC-67GHz

VSWR

1.05:1 typ / 1.20:1 max

Insertion Loss

0.5dB max

Durability

>1000 Cycles min

Insulation Resistance

>5000 MΩ min

Operating Temperature

-65°C ~ +165°C

Body Material

Stainless Steel Passivated

Center Conductor

Beryllium Bronze Gold Plated

Dielectric

PEI


APPLICATIONS

RF Testing & Development.

Ensures precise signal integrity for high-frequency measurements.

Telecom & Wireless Networks

Enables reliable high-speed data transmission and optimized signal routing in communication infrastructure.

Medical & Precision RF Devices

Supports sensitive RF applications requiring high accuracy.
