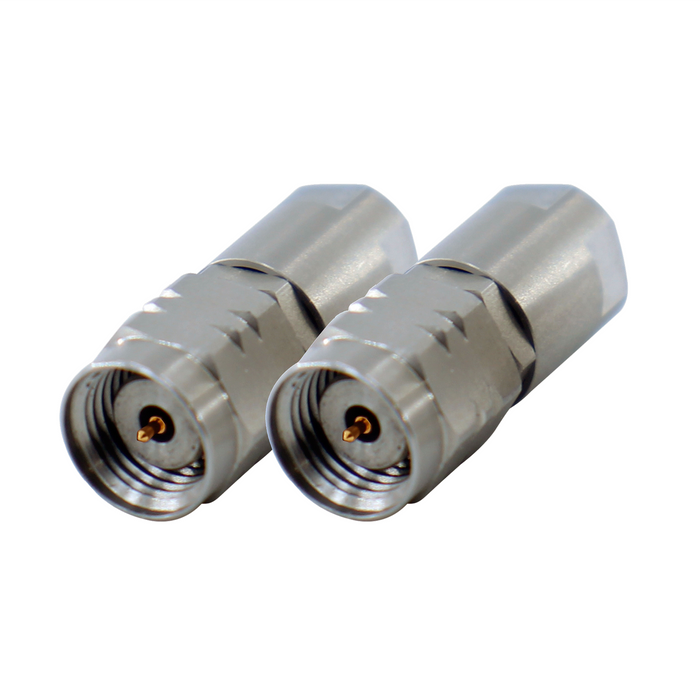

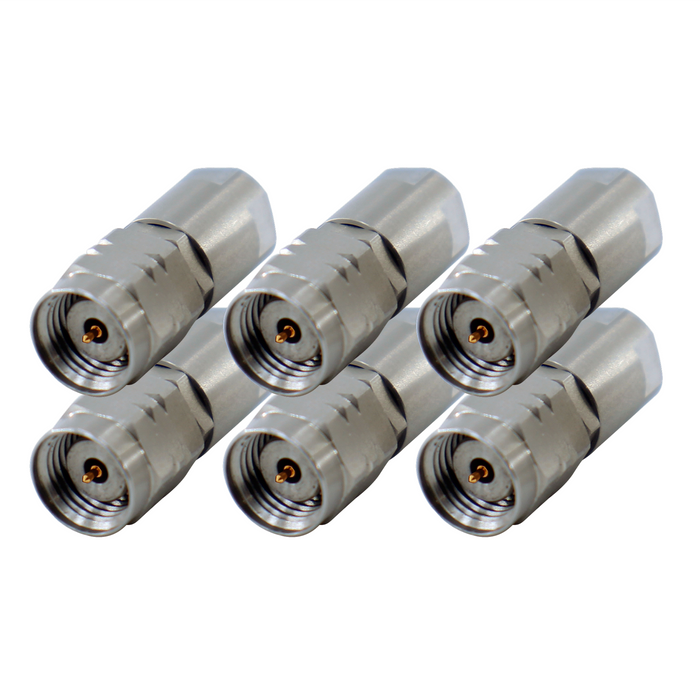

DC-67GHz 1W 1.85mm Male Coaxial Termination

DC-67GHz 1W 1.85mm Male Coaxial Termination

SKU T67G-1W-185M-02
Availability:
20 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
$680.00 - $1,956.00
$680.00
$680.00 - $1,956.00
$680.00

Excellent VSWR: 1.15:1 typ / 1.40:1 max

Power: ≤1W

Durability: >500 Cycles

Operating Temperature: -55°C ~+125°C

Pack Size: 2 Pack

WHY CHOOSE THIS TERMINATION?

  • ✔ Superior Signal Absorption – Effectively dissipates RF energy to minimize unwanted reflections.
  • ✔ Optimized Impedance Matching – Maintains system stability with 1.15:1 typ, 1.40:1 max VSWR.
  • ✔ Long-Term Reliability – Built to endure ≥500 mating cycles for consistent lab and field performance.
  • ✔ Rugged & Temperature-Resistant – Performs in extreme conditions (-55~+125°C), ensuring durability in demanding RF environments.

PRODUCT OVERVIEW

Enhance RF system performance with the DC–67GHz 1W 1.85mm Male Coaxial Termination, a high-reliability termination designed for low reflection and optimal impedance matching across DC–67GHz. Featuring a 1.85mm Male connector, it ensures a VSWR of 1.15:1 typ and 1.40:1 max, minimizing signal distortion. With a ≤1W CW rating and robust durability for ≥500 mating cycles, it delivers long-term stability in temperatures ranging from -55~+125°C. Ideal for RF test setups, signal termination, and power dissipation applications.


SPECIFICATIONS

Frequency Range

DC–67GHz

VSWR

1.15:1 typ / 1.40:1 max

Impedance

50Ω

Power

≤1W

Durability

≥500 Cycles

Weight

≤5g

Dimension¹

Φ9×15.3mm

Interface

1.85mm [M]

Outer Conductor

Stainless Steel, Passivated

Center Conductor

BeCu, Gold Plating

Dielectric

PEI

Operating Temperature

–55 ~ +125°C

1. Unless otherwise specified, decimal tolerance: x.±0.3


APPLICATIONS

Absorbing Unused Signal Power

Prevents reflections and protects system components.

Terminating Unused Ports

Maintains system stability in splitters, couplers, and power dividers.

Testing & Calibration

Ensures accurate load conditions in RF test setups.
