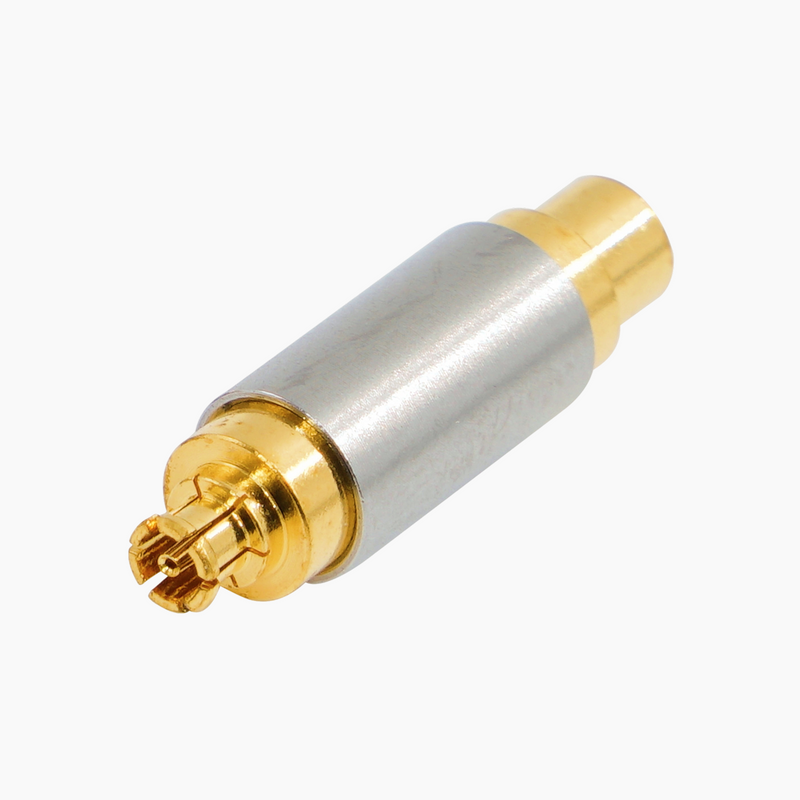

6dB Fixed Attenuator, DC-18GHz, SSMP Male-Female, 2W

6dB Fixed Attenuator, DC-18GHz, SSMP Male-Female, 2W

SKU FA18G-2W06-SPMF-02
Availability:
25 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
$196.00 - $558.00
$196.00
$196.00 - $558.00
$196.00

Attenuation Accuracy: ±0.2dB typ

Excellent VSWR: 1.10:1 typ, 1.30:1 max

Power: 2W

Material: Stainless Steel (Passivated)

Operating Temperature: -55° ~ +125°C

Pack Size: 2 Pack

WHY CHOOSE THIS ATTENUATOR?

  • ✔ Precise Attenuation – ±0.2dB typ
  • ✔ Low VSWR – 1.10:1 typ, 1.30:1 max
  • ✔ Ultra-Compact Design – Φ4.8x16.5mm, ideal for space-constrained system integration
  • ✔ High Power Handling – Rated for 2W continuous power
  • ✔ SSMP Male-Female Connectors – Ultra-minature push-on design for high-density applications

PRODUCT OVERVIEW

Simplify signal control with our 6dB Fixed Attenuator, engineered for accuracy and reliability across a DC to 18GHz frequency range. Featuring SSMP Male-Female connectors, it has a precise attenuation of ±0.2dB typ with a 1.10:1 typ, 1.30:1 max VSWR, handling up to 2W of power.


SPECIFICATIONS

Frequency Range

DC–18GHz

VSWR

1.30:1 max

Attenuation

6dB typ

Attenuation Accuracy

−0.4dB to +0.4dB max

Impedance

50Ω

Power

≤2W

Durability

≥500 Cycles

Weight

≤2g

Dimension¹

Φ4.8x16.5mm

Interface

SSMP[M] - SSMP[F]

Outer Conductor

BeCu/Brass, Gold-Plating; Stainless Steel, Passivated

Center Conductor

BeCu, Gold Plating

Dielectric

PTFE

Operating Temperature

−55 ~ +125°C

1. Unless otherwise specified, decimal tolerance: x.±0.2


APPLICATIONS

Test & Measurement

Provides precise signal calibration for network analyzers, spectrum analyzers, and signal generators.

Impedance Matching

Reduces signal reflection, optimizing RF system efficiency.

Signal Conditioning

Prevents amplifier and receiver overload, ensuring stable performance.
